Brand: Tripp-Lite
|
SKU:
812509

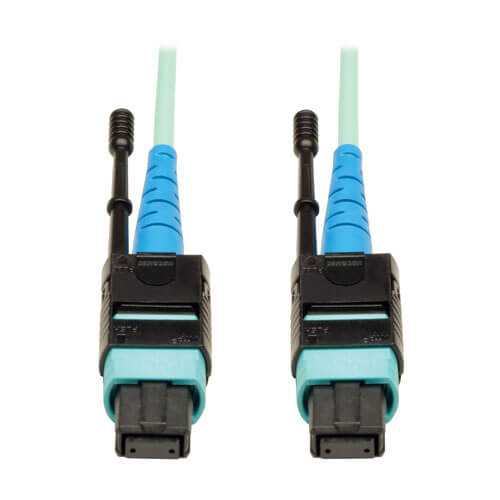

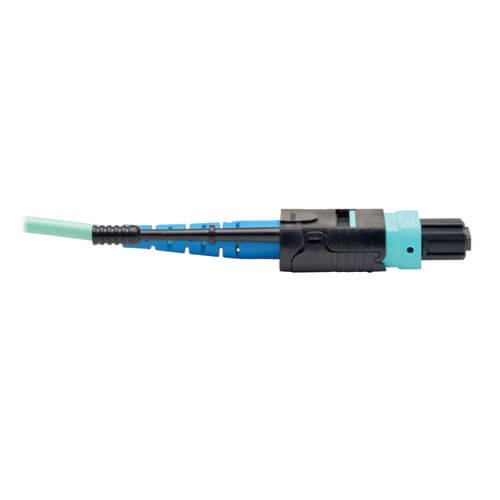

Tripp-Lite N846-03M-24-P | MTP/MPO Patch Cable with Push/Pull Tab Connectors, 100GBASE-SR10, CXP, 24 Fiber, 100Gb OM3 Plenum-rated - Aqua, 3M (10 ft.)
Regular price
$613.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N846-03M-24-P | MTP/MPO Patch Cable with Push/Pull Tab C...
Regular price
$613.08
Unit price
Description
Description
Tripp-Lite N846-03M-24-P | MTP/MPO Patch Cable with Push/Pull Tab Connectors, 100GBASE-SR10, CXP, 24 Fiber, 100Gb OM3 Plenum-rated - Aqua, 3M (10 ft.)
Features
- MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections

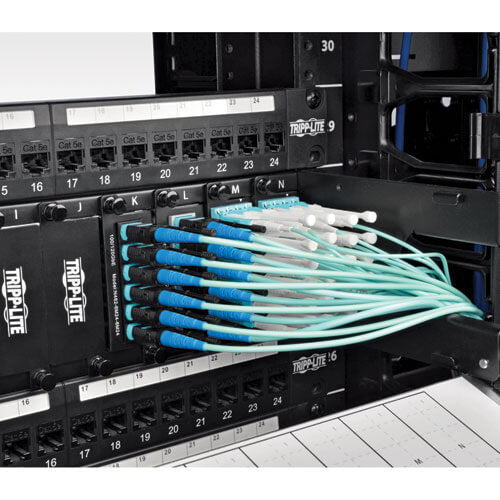

- Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
- 24 times the density of SC style connectors
- No need for long fan-out cables or individual long duplex cable runs
- High-density design cuts down on installation costs
- 50/125 OM3 Rated Multimode Fiber, 850nm
- Plenum rated jacket
- Unique cable ID label for Quality Control and Traceability
- Each cable 100% tested for low insertion loss and back reflection
- Test data supplied with each cable
- Custom lengths available
Special Features
| Push/Pull Tabs | Yes |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332186751 |
|---|---|
| Technology | Multimode; MTP/MPO |
| Optical Mode | OM3 |
Physical
| Cable Jacket Color | Aqua |
|---|---|
| Clad Diameter | 125 micron |
| Core Diameter | 50 micron |
| Number of Fibers | 24 |
| Cable Length (ft.) | 9.8 |
| Cable Length (in.) | 118.1 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.08 |
Communications
| Network Speed | 10Gbps / 40Gbps / 100Gbps |
|---|
Connections
| Side A - Connector 1 | 24-STRAND MTP (FEMALE) |
|---|---|
| Side A - Connector 2 | 24-STRAND MTP (FEMALE) |
| Side B - Connector 1 | 24-STRAND MTP (FEMALE) |
