Brand: Tripp-Lite
|
SKU:
9810460
Tripp-Lite N858-30M-3X8-MG | MTP/MPO Multimode Base-8 Trunk Cable, 24-Strand, 40GB/100GB, 40/100GBASE-SR4, OM4 Plenum-Rated (3xF/3xF), Push/Pull Tab, Magenta, 30 m (98 ft.)
Regular price
$1,698.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N858-30M-3X8-MG | MTP/MPO Multimode Base-8 Trunk Cable, ...
Regular price
$1,698.32
Unit price
Brand: Tripp-Lite
|
SKU:
9810460
Regular price
$1,698.32
Unit price
Shipping calculated at checkout.
Description
Description
Premium multimode fiber
optic cabling for transmitting 40/100 Gb data and voice signals. Designed for high-density
connections between network equipment in telecom rooms and data centers.
Features
- OM4-Rated for 40/100 Gb Ethernet Applications

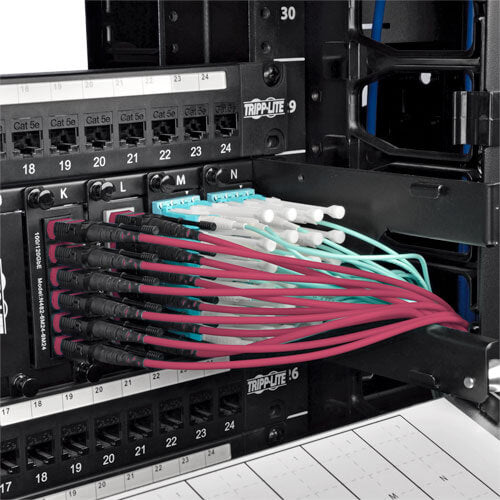

- Designed to extend high-density connections between network equipment in telecom rooms and data centers
- Recommended for patching between data center MDFs and IDFs
- Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
- Magenta-colored for identification as an OM4 cable

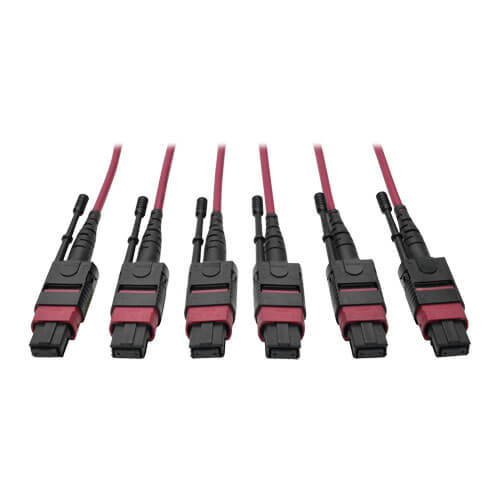

- MTP/MPO Connectors with Push/Pull Tabs
- 8-fiber female connectors 12 times denser than SC connectors
- Push/pull tab connectors easy to install and remove with one hand
- 100% tested for low insertion loss and back reflection
- Error-Free Signal Transfer
- 50/125 duplex glass fiber construction
- Plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts
Specifications
Specifications
Overview
| UPC Code | 37332200204 |
|---|---|
| Technology | Multimode; MTP/MPO |
| Optical Mode | OM4 |
Physical
| Cable Jacket Color | Magenta |
|---|---|
| Clad Diameter | 125 micron |
| Core Diameter | 50 micron |
| Number of Fibers | 8 |
| Cable Length (ft.) | 98.4 |
| Cable Length (in.) | 1181.1 |
| Shipping Dimensions (hwd / in.) | 3.74 x 8.27 x 8.27 |
| Shipping Weight (lbs.) | 2.82 |
Environmental
| Operating Temperature Range | -4 TO 140 F (-20 TO 60 C) |
|---|---|
| Storage Temperature Range | -4 TO 140 F (-20 TO 60 C) |
Communications
| Network Speed | 10Gbps / 40Gbps / 100Gbps |
|---|---|
| Attenuation @ 1310NM | 1.0dB/Km |
| Attenuation @ 850NM | 3.0dB/Km |
Connections
| Side A - Connector 1 | (3) 8-STRAND MTP (FEMALE) |
|---|---|
| Side A - Connector 2 | (3) 8-STRAND MTP (FEMALE) |
| Side B - Connector 1 | (3) 8-STRAND MTP (FEMALE) |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
