Tripp-Lite NGS24C2 | 24 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed Switch, 2 Dedicated Gigabit SFP Slots, 52 Gbps, Web Interface
Regular price
$366.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite NGS24C2 | 24 10/100/1000Mbps Port Gigabit L2 Web-Smart M...
Regular price
$366.33
Unit price
Description
Description

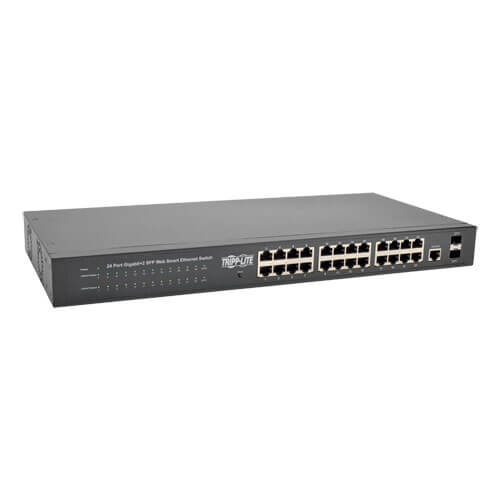

The energy-efficient NGS24C2 24-Port Gigabit L2 Web-Smart Managed Network Switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.

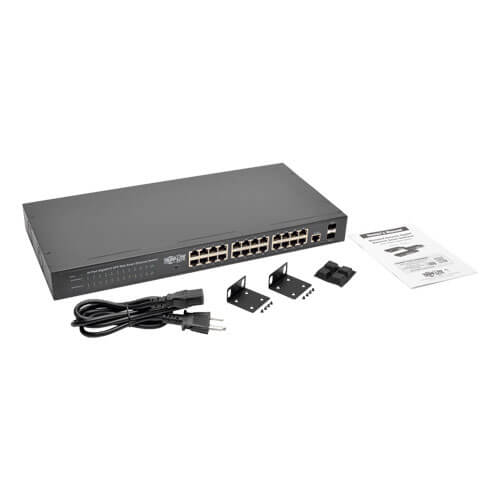

The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
Features
- Enterprise Managed Network Switch
- 24 twisted-pair RJ45 Gigabit Ethernet ports
- Auto-negotiable 10/100/1000 Mbps
- Automatic MDI/MDIX cross-over detection
- 52 Gbps switching capacity (2 Gbps per port with full duplex)
- Easy-to-read LEDs indicate connection and activity status for each port
- Supports 9k jumbo frames
- Supports MAC address auto-learning and auto-aging up to 8,000 addresses
- Advanced Enterprise-level and L2 management features
- Built-In Web-Smart Management Software
- Monitors and controls connected equipment via simple Web interface
- VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance
- Dual Dedicated Mini-GBIC SFP Ports
- Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper
- LEDs indicate interface traffic
- Compliant with Energy Efficient Ethernet standards
- Automatically shifts unused ports to low power state without interrupting network connection
- Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1d, 802.1w and 802.3ad standards
- Versatile Installation Options

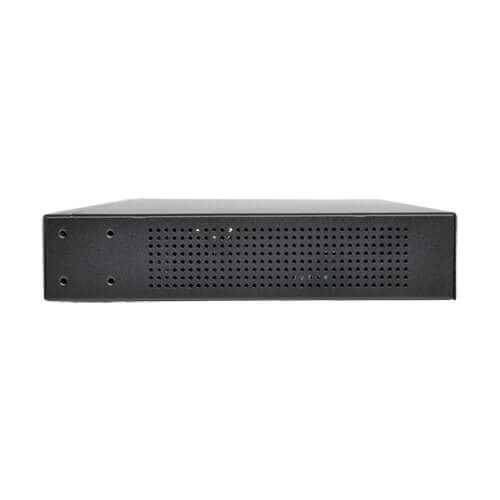

- Fanless metal housing mounts in 1U of EIA-standard 19 in. racks
- Supports desktop installation using included rubber feet on flat surface
- 5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source
Specifications
Specifications
Overview
| UPC Code | 37332194831 |
|---|
Input
| Electrical Consumption | 80 watts max. |
|---|---|
| Input Plug Features | Detachable NEMA 5-15P to C13 input cable can be replaced with a wide variety of 100 to 240V international cordsets that terminate to a C13 connector on the output side |
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208/240 |
| Input Phase | Single-Phase |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length (ft.) | 5 |
User Interface, Alerts & Controls
| Switches | 1 included switch enables factory reset |
|---|---|
| LED Indicators | Power LED (Green for Power On); One LED per RJ-45 port (Amber indicates 10/100Mbps link; Green indicates 1000Mbps link; LEDs flash to indicate port activity); Two LEDs indicate SFP connection (Green) |
Physical
| Color | Black |
|---|---|
| Minimum Required Rack Depth (inches) | 8.1 |
| Primary Form Factor | Desktop; Rackmount |
| Shipping Dimensions (hwd / in.) | 3.46 x 21.85 x 11.61 |
| Shipping Weight (lbs.) | 7.06 |
| Unit Dimensions (hwd / in.) | 1.73 x 17.32 x 8.07 |
| Unit Weight (lbs.) | 5.4 |
Environmental
| Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
|---|---|
| Relative Humidity | 10 to 90% (Non-condensing) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
Standards & Compliance
| Certifications | Compliant standards: IEEE 802.3ab (1000BASE-T GIGABIT ETHERNET), IEEE 802.3i (10BASE-T ETHERNET), IEEE 802.3u (100BASE-T ETHERNET), IEEE 802.3x (FULL DUPLEX/FLOW CONTROL), IEEE 802.3 (NWAY AUTO-NEGOTIATION), 802.1q(TAGGED VLAN), 802.1d(STP), 802.1w (RSTP), 802.1p (QUALITY OF SERVICE) |
|---|---|
| Approvals | Tested to: UL 60950-1:2007 (2nd Ed); CAN/CSA C22.2 NO. 60950-1-07 2nd Edition |
Warranty
| Product Warranty Period (Worldwide) | 5-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- User's Guide for NGS-Series Smart Switch Models (Multi-language)
- Owner's Manual for Managed Network Gigabit Ethernet Smart Switches (Multi-language)
- Tripp Lite Network Switches and Media Converters Visio Stencil
- Network Switches and Media Converters Preview
- PDU Ethernet Switch Combos (English)
- Download images for this product
