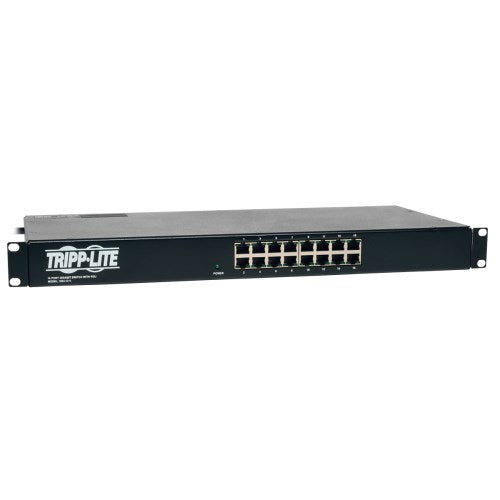

Tripp-Lite NSU-G16 | 16-Port Gigabit Ethernet Switch with 8 Outlet PDU

$405.23

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp Lite's NSU-G16 combines a 1.44kW single-phase 120V Basic Power Distribution Unit (PDU) with an Unmanaged 16-Port Gigabit Ethernet Switch for an all-in-one 1U rack-mount solution. It is perfect for racks in smaller, distributed networks where space is at a premium by providing both power and Ethernet connectivity in only 1U of rack space. The power distribution unit supplies continuous AC power from a connected UPS system or alternate source and contains 8 NEMA 5-15R outlets allowing you to power critical IT equipment. The Gigabit Ethernet Network Switch has 16 RJ45 ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for true “plug and play” capability. Utilizing Green Ethernet technology, power consumption is automatically lowered by (i) turning off Ethernet ports not in use or connected to a shutdown computer, and (ii) detecting the connected network cable lengths to adjust the power usage to only what is necessary. Constructed of heavy-duty steel housing, the NSU-G16 has a rugged design built for years of reliable performance.

Features

Power Distribution Unit (PDU):
1.44kW 12A 120V Basic Power Distribution Unit

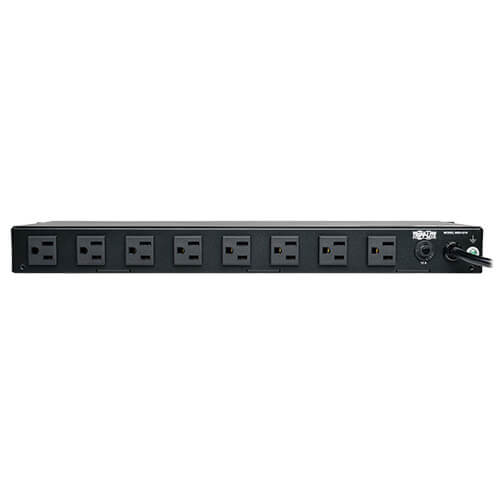

8 NEMA 5-15R AC outlets
NEMA 5-15P input plug; 6 ft. line cord
12 Amps
Unmanaged Ethernet Switch:

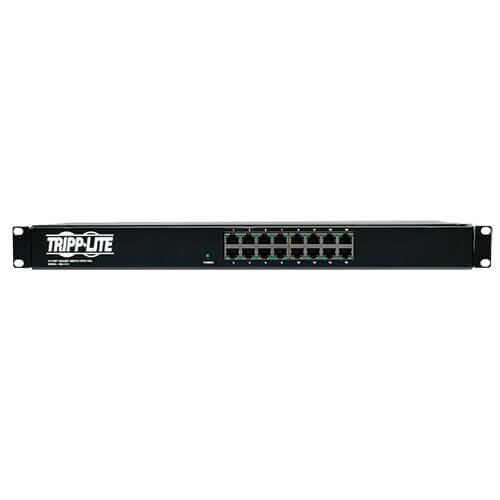

16 RJ45 Gigabit Ethernet ports
Auto-negotiable 10/100/1000 Mbps Ethernet on all ports selects port speed automatically based on the capabilities of the client
Auto MDI/MDIX crossover detection provides true, plug-and-play functionality
32 Gbps switching capacity at Full-Duplex
Store-and-Forward switching method
2Mb RAM for data buffering
8K address MAC address table
Supports Jumbo Frames up to 9216 Bytes
Power ON/OFF LED illuminates to indicate that the switch is receiving power
RJ45 LED's Per Port (Left LED Blinks Green for Activity, Right LED is off for 10/100 Mbps speeds, and solid Green for 1000 Mbps)
Compliant with IEEE 802.3ab (1000BASE-T GbE), IEEE 802.3u (100BASE-TX Fast Ethernet), IEEE 802.3i (10BASE-T Ethernet), IEEE 802.3x (Full Duplex/Flow Control), IEEE 802.3 (NWAY Auto-Negotiation), 802.3ac (VLAN) and 802.3az (Energy Efficient Ethernet)
Power Management:
Using Green Ethernet technology, energy efficiency is maximized by (i) turning off Ethernet ports not in use or connected to a shutdown computer and (ii) adjusting power usage relative to network cable lengths
Rack-mount Configuration:
1U Horizontal 19-inch rackmount
Constructed of heavy-duty steel housing

Specifications

Overview

UPC Code	37332184016
PDU Type	Basic

Input

Electrical Consumption	PDU supports up to 12A total; Network switch consumes up to 10 watts
Maximum Input Amps	12
PDU Plug Type	NEMA 5-15P
Input Phase	Single-Phase
Input Cord Length (ft.)	6

Output

Output Circuit Breakers	12A
Output Receptacles	(8) 5-15R

User Interface, Alerts & Controls

LED Indicators	Power LED (Green for Power On); (x2) RJ-45 LED's Per Port (Left LED Blinks Green for Activity; Right LED is off for 10/100 Mbps speeds; and solid Green for 1000 Mbps)

Physical

Color	Black
Minimum Required Rack Depth (inches)	11.4
PDU Form Factor	Horizontal (1U)

Connections

Ports	16
Network Switch Ports	(16) 10/100/1000 (RJ45)

Standards & Compliance

Approvals	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, FCC Part 15 Class A, RoHS 2 (with exemptions), REACH

Warranty

Product Warranty Period (Worldwide)	5-year limited warranty
