Brand: Tripp-Lite | SKU: 9810504

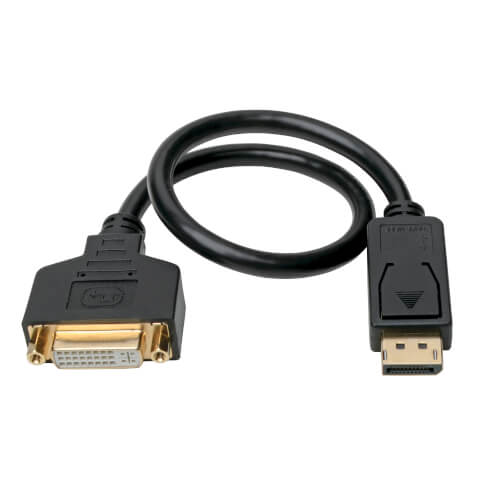

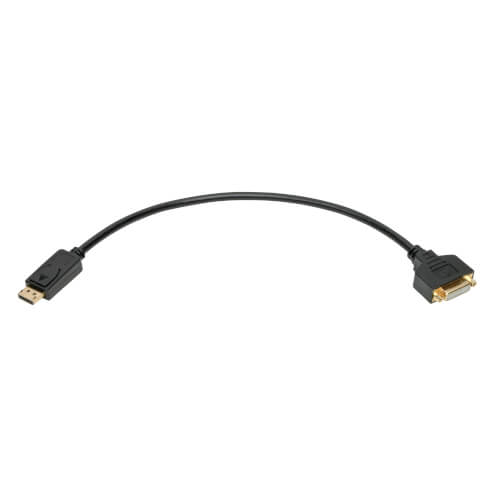

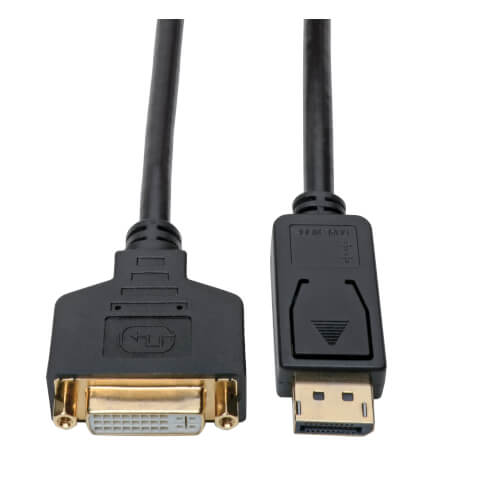

Tripp-Lite P134-001-GC | DisplayPort to DVI Adapter Video Converter, Black (M/F), 1 ft. (0.31 m)

Regular price $15.36
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

DP to DVI converter connects a DVI monitor to the DisplayPort output on your notebook, desktop PC or Chromebook Pixel.

Features

  • DP to DVI Converter Connects a DisplayPort Source to Your Existing DVI Display
  • This DisplayPort to DVI converter connects a DVI monitor or projector to the DisplayPort (DP) output on your notebook computer, desktop PC, Chromebook Pixel or other compatible device. It features a male DP connector and a female dual-link DVI-I connector, allowing you to continue using your existing DVI display and DVI cable to transmit video signals without the expense of a new DP display.
  • Transmits Outstanding 1080p Video for High-Definition Presentations
  • Ideal for classrooms, lecture halls and anywhere else you may give a presentation, this DisplayPort to DVI converter supports DVI-D single-link computer video resolutions up to 1920 x 1200 (at 60 Hz) and high-definition resolutions up to 1080p. It also complies with HDCP 2.2 and DisplayPort 1.1 standards. Molded gold-plated connectors and contacts provide maximum conductivity and minimum data loss to guarantee a clear transmission free of interference. The P134-001-GC is a passive adapter and requires that the connected computer has a DP++ ( DisplayPort ++ ) port, which allows DVI signals to be passed through. Check the documentation for your DisplayPort source for compatibility.
  • Ready to Use Right Out of the Package
  • The plug-and-play adapter requires no software, drivers or external power, so you can connect it to your devices right away. Only one foot in length, the P134-001-GC is recommended for stowing in your laptop bag and carrying to school, the office or the latest trade show.

Features & Specifications

Displayport Specification1.1
HDCP Specification2.2
Driver RequiredNo

Specifications

Overview

UPC Code37332238047
TechnologyDVI; DisplayPort

Video

Max Supported Video Resolution1920 x 1200 (1080p) 60Hz
Max Supported Color Depth48-bit (w/ Dual-Link)
3D Video SupportedYes

Input

Bus PoweredYes

Physical

ColorBlack
Cable Jacket MaterialPVC
Cable Jacket RatingVW-1
Cable Outer Diameter (OD)7.0mm
Cable Length (ft.)1
Cable Length (in.)12
Ferrite CoreNo
Material of ConstructionPVC; ABS
Minimum Bend Radius70mm
Unit Weight (lbs.)0.13

Environmental

Operating Temperature Range32 to 104 F (0 to 40 C)
Storage Temperature Range5 to 122 F (-15 to 50 C)
Relative Humidity0% to 85% RH, Non-Condensing

Connections

Side A - Connector 1DISPLAYPORT (MALE)
Side B - Connector 1DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Connector PlatingGold
Contact PlatingGold

Standards & Compliance

CertificationsTested to CE, FCC, RoHS, REACH

Warranty

Product Warranty Period (Worldwide)3-year limited warranty
