Brand: Tripp-Lite
|
SKU:
9810509

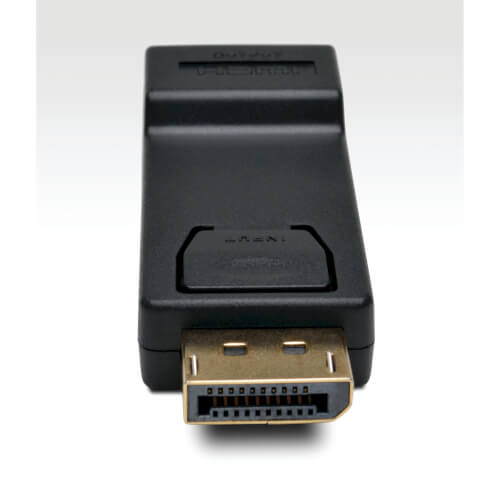

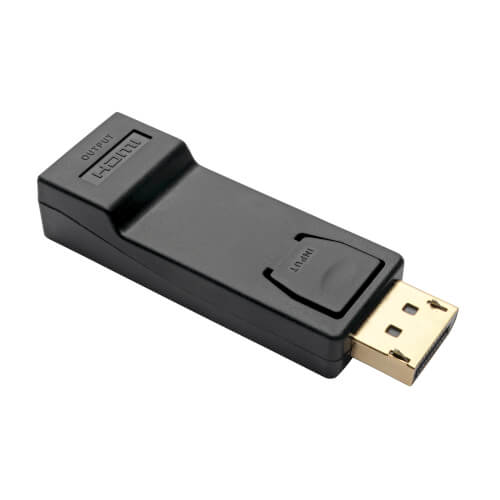

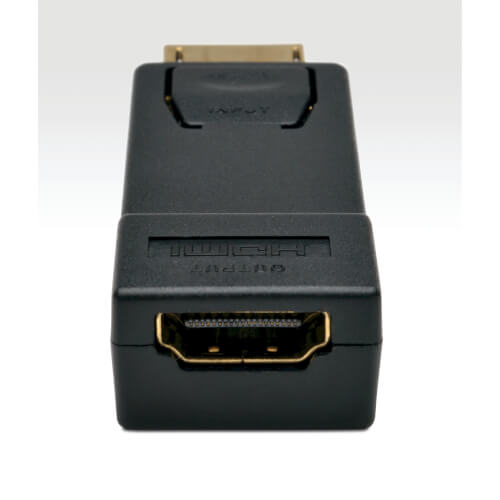

Tripp-Lite P136-000-1-BP | DisplayPort to HDMI Adapter Video Converter (M/F), 50 Pack
Regular price
$427.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Passive adapter connects your DisplayPort (DP) computer to an HDMI television, monitor or projector for playing audio and 1080p video.
Features
- A Smart Solution for Displaying 1080p Video in Business and Digital Signage Applications
- This set includes 50 Tripp Lite P136-000-1 DisplayPort-to-HDMI passive adapters (M/F). Each adapter allows you to play stereo audio and high-definition video from your DisplayPort computer or laptop to an HDMI television, monitor or projector. This allows you to continue using your existing HDMI display without the time, effort or expense of replacing it with a new DP monitor. These adapters are an easy, inexpensive way to play 1080p video in classrooms, conference rooms, trade shows and other on-the-road presentations.
- Ready to Use Right Out of the Package
- Ideal for displaying video on a large monitor or digital sign, each fully molded adapter measures just over two inches in length, making it perfect for carrying in your pocket, briefcase, purse or laptop bag for convenient use anywhere. Just connect the male DP end to your computer’s DisplayPort and the female HDMI end to an HDMI cable to begin sharing HD audio/video signals. The plug-and-play adapter requires no software, drivers or external power.
- Enjoy Outstanding 1080p Picture Quality on Any HDMI Display
- Each P136-000-1 adapter supports video resolutions up to 1920 x 1200, HD resolutions up to 1080p, and DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.
- Passive Adapters Require DisplayPort++ for HDMI Pass Through
- Because they are passive adapters, these units require that the connected source device have a DisplayPort++ (DP++) dual-mode port, which allows HDMI signals to pass through. Check your DisplayPort source’s documentation for compatibility.
Features & Specifications
| Displayport Specification | 1.1a |
|---|---|
| HDCP Specification | 1.3 |
| Driver Required | No |
Specifications
Specifications
Overview
| UPC Code | 37332237651 |
|---|---|
| Technology | HDMI; DisplayPort |
Video
| Max Supported Video Resolution | 1920 x 1080 @ 60Hz |
|---|---|
| Max Supported Color Depth | 36-bit Deep Color |
Input
| Product Length (in.) | 2.31 |
|---|---|
| Product Length (ft.) | 0.19 |
Physical
| Color | Black |
|---|---|
| Material of Construction | PCB |
| Shipping Dimensions (hwd / in.) | 1.00 x 13.50 x 15.75 |
| Unit Dimensions (hwd / in.) | 2.31 x 0.55 x 0.89 |
| Unit Weight (lbs.) | 0.09 |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| Storage Temperature Range | 14 to 176 F (-10 to 80 C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
Standards & Compliance
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
