Brand: Tripp-Lite
|
SKU:
642536

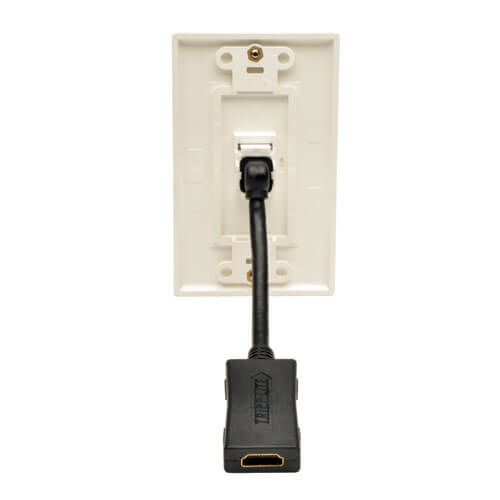

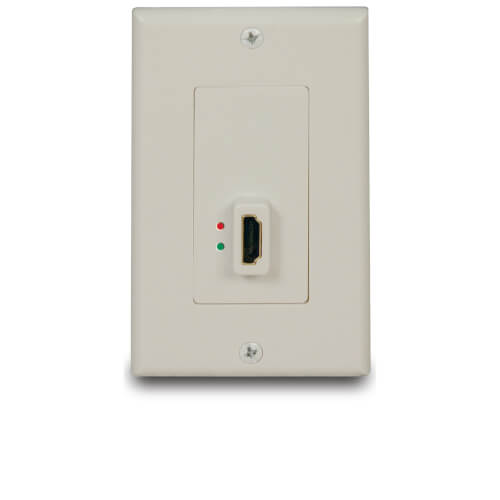

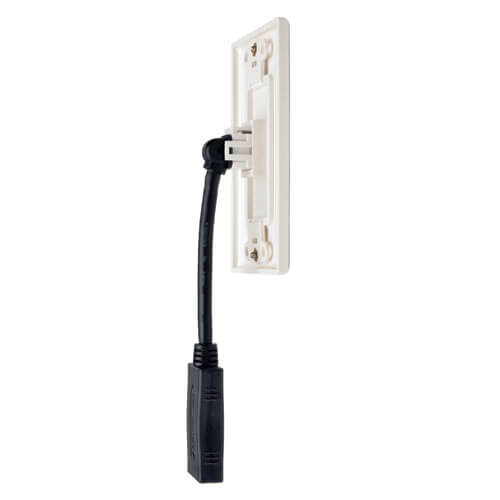

Tripp-Lite P166-001-A | HDMI Display-Side Wallplate with Active Signal Booster, White (F/F)
Regular price
$51.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite P166-001-A | HDMI Display-Side Wallplate with Active Sig...
Regular price
$51.32
Unit price
Description
Description
Tripp Lite's P166-001-A HDMI Display-side Wallplate with Signal Booster increases the distance a 1080p (24Hz) signal can be transmitted beyond the recommended 16-ft. (4.88 m.). It supports video resolutions up to 1080p, and a maximum distance of 150-ft. (45.72 m) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p (24Hz) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100-ft. (30.5 m) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable. Simply connect the longer cable between the source and the P166-001-A, and the shorter cable (16-ft. (4.88 m or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.
Features
- Cleans up Home Theater installations by hiding HDMI Cables
- Wallplate is the size of a standard electrical outlet
- Extend a 1080p (24Hz) HDMI signal up to 150-ft. (45.72 m) from the source
- Use P568-Series HDMI cables in most applications
- When extending a 1080p (24Hz) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100-ft. (30.5 m) are available from Tripp Lite as a custom order)
- 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- HDCP compliant
- No software or drivers required
Specifications
Specifications
Overview
| UPC Code | 37332141033 |
|---|---|
| Product Type | Signal Booster |
| Technology | HDMI |
Video
| Maximum Signal Range (ft) | 150 |
|---|
Physical
| Color | White |
|---|---|
| Number of Displays | 1 |
Communications
| USB Extension Support | No |
|---|
Connections
| Side A - Connector 1 | HDMI (FEMALE) |
|---|---|
| Side B - Connector 1 | HDMI (FEMALE) |
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
