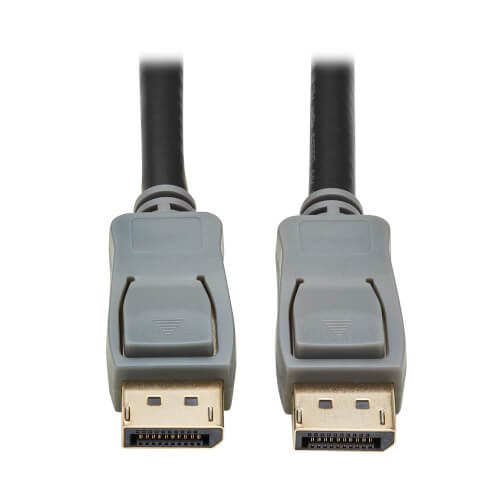

Tripp-Lite P580-070-4K6 | DisplayPort Cable with Latching Connectors (M/M), 70 ft. (21.3 m), Black
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite P580-070-4K6 | DisplayPort Cable with Latching Connector...
Description
Description
This 4K DisplayPort cable (M/M) securely connects 4K-compatible source and display devices in your audio/video application. The P580-070-4K6 is compatible with all DisplayPort devices, including 4K Blu-ray players, gaming consoles, laptops, media servers, satellite/cable TV boxes and tablets, as well as HDTVs, monitors, projectors and audio receivers. The cable’s patented bonded-pair design with small 7.3-m illimeter diameter allows more flexibility during installation. The P580-070-4K6 supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz. It supports HBR2 (High Bit Rate 2) and HDCP 2.2 encryption, whih allows you to stream 4K content with no loss in resolution. This HBR2 cable also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. It is backward compatible with previous DisplayPort generation s, allowing you to use it with non-4K equipment.
Tripp-Lite - P580-070-4K6 - Features
- Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) with HBR2 (High Bit Rate 2)
- Patented bonded-pair design with small, flexible outside diameter of just 7.3 mm
- 70 ft. length allows you great flexibility in setting up devices in your A/V application
- Comlies with HDCP 2.2 standards to display up-to-date 4K video content
- Plug-and-play operation with no software required for easy, immediate installation
Specifications
Specifications
Tripp-Lite - P580-070-4K6 - Specifications
| UNSPSC Code | 52161500 |
|---|---|
| UPC Code | 37332293787 |
| Product Type | Passive Cable |
| Technology | DisplayPort |
| Cable Type | Passive |
| Max Supported Color Depth | 24-bit True Color |
| Signal Transmission | Bidirectional |
| Bandwidth | 21.6 Gbps |
| Connector Plating | Gold |
| Color | Black |
| Material of Construction | PVC |
| Cable Outer Diameter (OD) | 7.3MM |
| Wire Gauge (AWG) | 26/30 |
| Cable Length (ft.) | 70 |
| Unit Dimensions (hwd / in.) | 17.000 x 14.000 x 0.500 |
| Unit Weight (lbs.) | 2.71 |
| Operating Temperature Range | 14° to 122°F (-10° to 50°C) |
| Operating Humidity Range | 0% TO 90% RH, NON-CONDENSING |
