Brand: Tripp-Lite
|
SKU:
812625

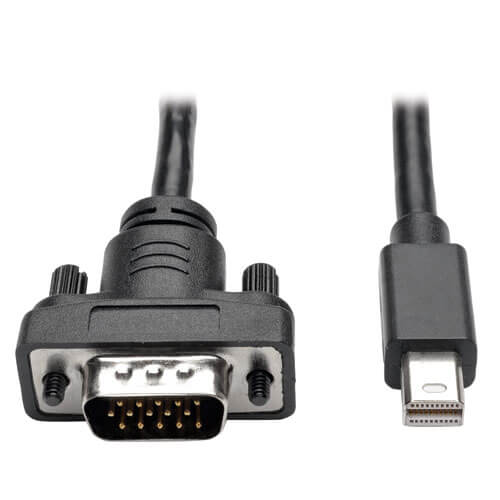

Tripp-Lite P586-003-VGA-V2 | Mini DisplayPort 1.2 to VGA Active Adapter Cable (M/M), 3 ft. (0.9 m)
Regular price
$14.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite P586-003-VGA-V2 | Mini DisplayPort 1.2 to VGA Active Ada...
Regular price
$14.36
Unit price
Description
Description
Converts a Mini DisplayPort v1.2 video signal for display on a VGA monitor, projector or television.
Features
- Send High-Quality Mini DisplayPort v1.2 Video Signals to a VGA Display
- Connects Mini DisplayPort (or Thunderbolt) computer to VGA-enabled monitor, projector or TV
- Ideal for displaying video on large monitor or digital sign
- Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
- Mini DisplayPort and HD15 male connectors
- No separate adapter required
- Vibrant, Superior Video Quality
- Supports computer video resolutions up to 1920 x 1200
- Supports HD video resolutions up to 1920 x 1080 (1080p)
- Converts Single-Mode and Dual-Mode (DP++) Mini DisplayPort output
- Perfect for use with graphics cards, such as AMD Eyefinity, that don’t output DP++ signals
- Superior Materials for Superior Performance
- Double shielding with foil and braid for maximum EMI/RFI protection
- Nickel-plated connectors with gold-plated contacts for excellent conductivity
- Integral strain relief for long life
Specifications
Specifications
Overview
| UPC Code | 37332191847 |
|---|---|
| Product Type | Active Cable |
| Technology | VGA/SVGA; DisplayPort |
Video
| Max Supported Video Resolution | 1920 x 1200 (1080p) |
|---|
Physical
| Color | Black |
|---|---|
| Cable Jacket Rating | VW-1 |
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
| Operating Humidity Range | 0 to 85%; Non-Condensing |
| Storage Humidity Range | 0 to 85%; Non-Condensing |
Connections
| Side A - Connector 1 | MINI DISPLAYPORT (MALE) |
|---|---|
| Side B - Connector 1 | HD15 (MALE) |
| Connector Plating | Nickel |
Standards & Compliance
| Certifications | CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (U.S. & Canada) | 3-year limited warranty |
|---|
