Tripp-Lite PCE-1G-02-NIC | Gigabit Ethernet PCI Express (PCIe x4) Network Interface Card (NIC), I350-T2
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PCE-1G-02-NIC | Gigabit Ethernet PCI Express (PCIe x4) N...
Description
Description

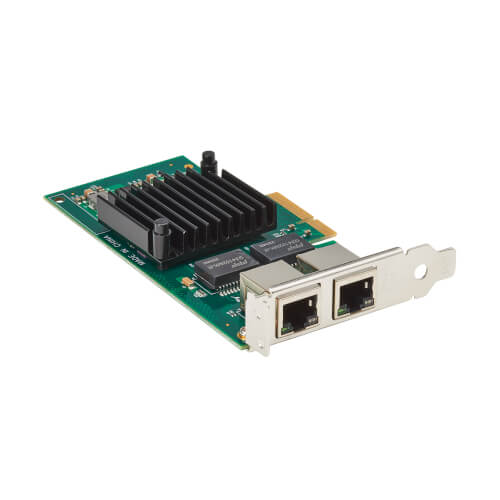

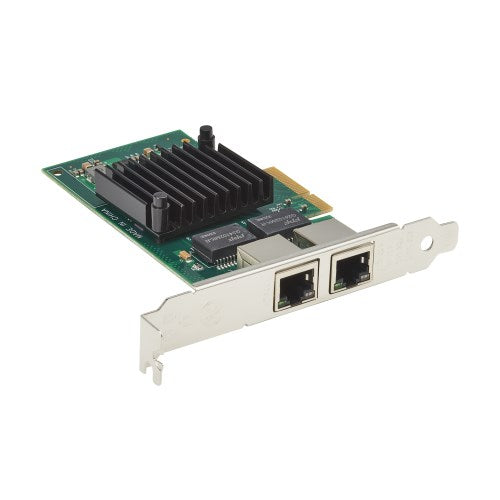

The high-performance PCE-1G-02-NIC connects to your desktop computer’s motherboard and adds two 10/100/1000 Mbps RJ45 ports via an available four-lane PCI Express (PCIe) slot. Based on the bridgeless Intel I350 controller, this adapter is a 1 Gbps networking innovation for enterprise and data center applications. Add multiple Ethernet ports to dual-homed proxy or gateway systems for added security and redundant connectivity for uninterrupted network connections.
This PCIe network interface card (NIC) is ideal for Virtual Machine (VM) environments with multiple operating systems that require shared or dedicated NICs. It also is a valuable addition to desktop PC servers and workstations with few PCIe slots available in which turning one RJ45 port into two is beneficial.
Tripp-Lite - PCE-1G-02-NIC - Features
- Adds two 1G network ports to a single four-lane PCI Express slot in a desktop PC
- Based on Intel I350 chipset for superior functionality in complex network applications
- Compliant with IEEE 802.ab, 802.3u, 802.3 az, 802.1Q and 802.1ad

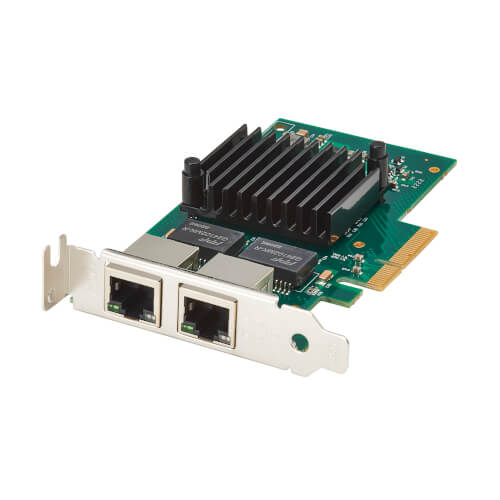

- Includes a low-profile mounting bracket for low-profile PC builds
- Compatible with Windows and Linux operating systems
- 2-year limited warranty
Tripp-Lite - PCE-1G-02-NIC - Features
| Tripp-Lite PCE-1G-02-NIC Data Sheet | Click to View |
|---|---|
| Tripp-Lite PCE-1G-02-NIC Quick Start Guide | Click to View |
Specifications
Specifications
Tripp-Lite - PCE-1G-02-NIC - System Requirements
- Requires an available PCI Express (PCIe) x4/x8/x16 slot
- Compatible with Windows and Linux operating systems
Tripp-Lite - PCE-1G-02-NIC - Package Includes
- PCE-1G-02-NIC 2-Port Gigabit Ethernet Network Card
- Low-profile bracket
- Quick Start Guide
Tripp-Lite - PCE-1G-02-NIC - Specifications
| UPC Code | 037332286390 |
|---|---|
| Technology | PCIe |
| Number of Ports | 2 |
| Color | Green |
| Shipping Dimensions (hwd / cm) | 2.69 x 15.70 x 12.50 |
| Shipping Weight (kg) | 0.07 |
| Operating Temperature Range | 32 to 131F (0 to 55C) |
| Operating Humidity Range | 35% to 90%, non-condensing |
| Product Compliance | CE (Europe); FCC (USA); IEEE 802.1q Tagged VLAN; IEEE 802.3 10Base-T; IEEE 802.3ab 1000Base-T; IEEE 802.3ad (LACP); IEEE 802.3az (Energy Efficient Ethernet); IEEE 802.3u 100Base-TX/FX; IEEE 802.3x Flow Control; IEEE 802.3z 1000Base-SX/LX; REACH; RoHS; UKCA |
| UNSPSC Code | 43201404 |
