Tripp Lite PDU1215 | 1.8Kw Single-Phase 120V Basic Pdu, 13 Nema 5-15R Outlets, Nema 5-15P Input, 15 Ft. Cord, 1U Rack-Mount
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp Lite PDU1215 | 1.8Kw Single-Phase 120V Basic Pdu, 13 Nema 5-1...
Description
Description

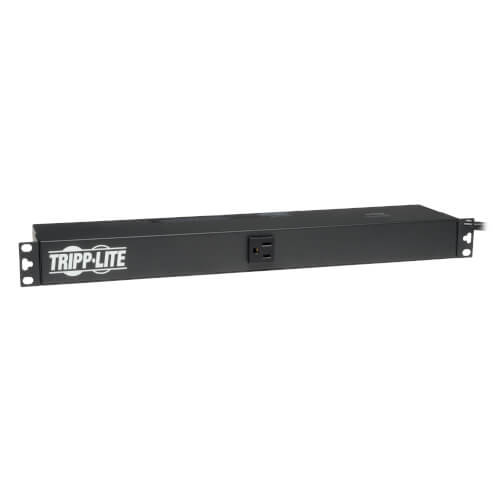

Tripp Lite’s PDU1215 AC power distribution unit offers 15 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1215 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-15R outlets and one front-facing, 15-ft. AC power cord, 15 amp circuit breaker, grounding lug and rugged all-metal case design.
Tripp Lite - PDU1215 - Features
- Reliable Single-Phase Power Distribution
- Ideal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications
- 13 NEMA 5-15R outlets in one breakered load bank
- 15A circuit breaker protects outlets against overloads
- NA 5-15P input plug with 15 ft. cord
- Rear-panel grounding lug
- Switchless Design
- Prevents accidental shutdowns and costly downtime
- Versatile Installation Options
- Mounts horizontally in 1U of EIA-standard 19 in. 2- and 4-post racks
- Reversible all-metausing faces front or rear in rack
- Ready for toolless 0U vertical installation with optional PDUSIDEBRKT (sold separately)
- Also mounts on wall, workbench or under a counter
Specifications
Specifications
Tripp Lite - PDU1215 - Specifications
| Number Of Outlets | 13 |
|---|---|
| Type | Rack Mount Pdu |
| UNSPSC Code | 39121017 |
