Brand: Tripp-Lite
|
SKU:
305008

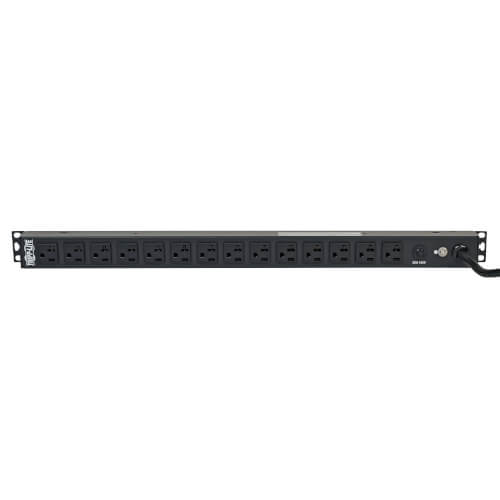

Tripp-Lite PDU1420T | 2.4kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input, 15 ft. (4.57 m) Cord, 0U Vertical
Regular price
$377.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The PDU1420T 2.4kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1420T features a single breakered load bank with 14 NEMA 5-15/20R outlets. The NEMA L5-20P input plug with long 15-ft. (4.57 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The 24-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The 24-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.
Features
- Reliable Single-Phase Power Distribution
- Ideal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications
- 14 NEMA 5-15/20R outlets in one breakered load bank
- 20A circuit breaker protects outlets against overloads
- NEMA L5-20P input plug with 15-ft. (4.57 m) cord
- 24 in. all-metal housing
- Switchless Design
- Prevents accidental shutdowns and costly downtime
- Versatile Installation Options
- Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
- Also mounts on wall, workbench or under a counter with user-supplied hardware
Special Features
| TVSS Grounding | Grounding lug |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332122254 |
|---|---|
| PDU Type | Basic |
Input
| PDU Input Voltage | 120V |
|---|---|
| Recommended Electrical Service | Single-phase 20A 120V service |
| Maximum Input Amps | 20 |
| PDU Plug Type | NEMA L5-20P |
| Input Phase | Single-Phase |
| Input Cord Length (ft.) | 15 |
Output
| Output Capacity Details | 2.4kW (120V) / 24A total capacity; 16A max per 5-15/20R outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
User Interface, Alerts & Controls
| Switches | No power switch |
|---|
Physical
| Form Factors Supported | Vertical or horizontal mounting supported in wallmount applications, racks and a variety of other surface types |
|---|---|
| Material of Construction | Metal |
| PDU Form Factor | Vertical (0U) |
Standards & Compliance
| Certifications | Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
|---|
Warranty
| Product Warranty Period (Worldwide) | 5-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for Power Distribution Units (PDUs)
- Single Phase Power Distribution Units (PDUs) Visio Stencil
- Single-Phase Power Distribution Units (PDUs) Stencil Preview
- 230V Power Distribution Unit (PDU) Brochure (English)
- Integrated Solutions Brochure (English)
- 120V Power Distribution Unit (PDU) Models and Specifications List (English)
- 120V Power Distribution Unit (PDU) Brochure (English)
- PDU Buying Guide
- PDU Installation Options
- Custom Products from Tripp Lite Are One Call Away
- Outlet Plug Types
- PDU Types
