Brand: Tripp-Lite | SKU: 931942

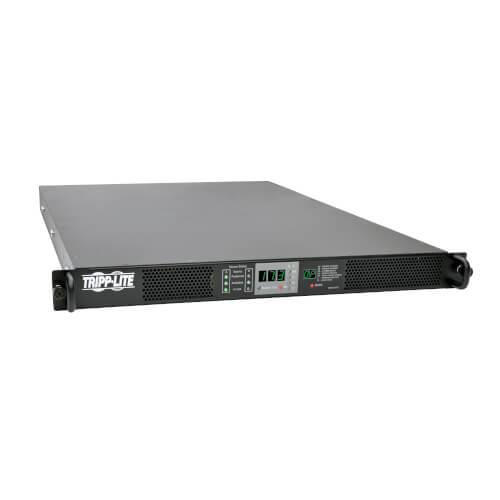

Tripp-Lite PDU360AT6G60 | 17.3kW 3-Phase Monitored Automatic Transfer Switch, 2 208V IEC309 60A Inputs, 1U (0U PDU Accessory Sold Separate), TAA

$3,168.38

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp Lite’s patented PDU360AT6G60 17.3kW 3-Phase 208V Monitored Automatic Transfer Switch / ATS PDU (U.S. Patent 9,467,006) provides rapid coordination of unsynchronized phases without dropping loads. It operates with the high efficiency and reliability required for data center applications.

Working in tandem with a required 0U vertical outlet accessory (sold separate; choose from PDU3V602D354, PDU3V602D354A or PDU3V602D354B), the 1U PDU360AT6G60 provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations.

Dual 6.5-foot input cords with IEC 309 60A Blue (3P+E) plugs connect to separate primary and secondary 3-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy (±1 percent). Digital LED display indicates power availability, voltage, source A/B input status, output load and power factor.

Features

Primary and Secondary Inputs for Power Redundancy
Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations
Dual 6.5 ft. input cords with IEC 309 60A Blue (3P+E) plugs connect to separate primary and secondary 3-phase power sources
Automatic Transfer Switching
Dynamic solid-state (TRIAC) automatic transfer switching
Patented ATS technology provides rapid coordination of unsynchronized phases without dropping loads
Switches to secondary power source if primary source fails or becomes unstable
1–5 ms transfer time ensures uninterrupted operation of connected equipment
Multifunction Digital LED Display
Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor
Advanced Network Monitoring
Built-in Ethernet network interface allows full remote access for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP
Real-time load/current data with billing-grade accuracy (+/- 1 percent)
Tiered access privileges allow both an administrator and a guest to log in
Automated alerts help prevent accidental overloads, power loss and downtime
Supports centralized management through NMS or DCIM platform
Optional ENVIROSENSE module (sold separately) monitors temperature and humidity
Broad Communications Compatibility
Supports HTTP, HTTPS, PowerAlert, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP and NTP
0U Vertical Outlet Accessory Required
Requires separate installation of Tripp Lite PDU3V602D354, PDU3V602D354A or PDU3V602D354B power strip (sold separately)
20A circuit breakers protect each single-phase load bank
Supports 0U toolless button-mount rack mounting
Mounts Horizontally in 1U of Rack Space
Compatible with EIA-standard 19 in. 4-post racks and rack enclosures
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Special Features

Grounding Lug	Included

Specifications

Overview

UPC Code	37332192905
PDU Type	Monitored; Auto-Transfer Switch

Input

Maximum Input Amps	48
PDU Plug Type	(2) IEC-309 60A BLUE (3P+E)
Input Phase	3-Phase
Input Cord Details	Set of 2 inputs enable connection to separate PRIMARY and SECONDARY power sources
Input Cord Length (ft.)	6.5

Output

Output Capacity Details	17.3kW (208V) total capacity; 27.8A max per output phase (L1-L2, L2-L3, L3-L1), 13.9A max per breakered load bank (C1-C6)
Frequency Compatibility	60 Hz

User Interface, Alerts & Controls

Reported Load Segments	Supports local display of A & B line INPUT CURRENT; INPUT VOLTAGE & FREQUENCY per phase; OUTPUT CURRENT; KW; VOLTAGE & POWER FACTOR per output phase combination (L1-L2; L2-L3; L3-L1); TOTAL OUTPUT POWER (kW); PHASE IMBALANCE (%); TEMPERATURE (C/F); FAULT CODE and SCROLL IP
Front Panel LCD Display	Large 3-character display reports data for reported values; Additional 2 character digital display identifies the measurement value or specific location the displayed measurement applies
Front Panel LEDs	Set of 6 LEDs indicate A/B input PREFERRED; AVAILABLE & IN USE status; Set of 5 LEDs label the measurement value displayed (AMPS; KW; VOLTS; HZ & POWER-FACTOR); One additional red LED reports BREAKER TRIP status
Switches	MODE and ENTER buttons enable navigation and viewing of all reported information
Current Measurement Accuracy (Amps)	+/-1%
Voltage Measurement Accuracy (Volts)	+/-1%
Power Measurement Accuracy (Watts)	+/-1%

Physical

Form Factors Supported	1U rackmount ATS module; Separate purchase 0u vertical mount PDU outlet distribution bar sold separate (3 options available)
Material of Construction	Steel
PDU Form Factor	Horizontal (1U)

Standards & Compliance

Certifications	Tested to UL/CSA 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), RoHS Complaint, TAA Compliant

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty
