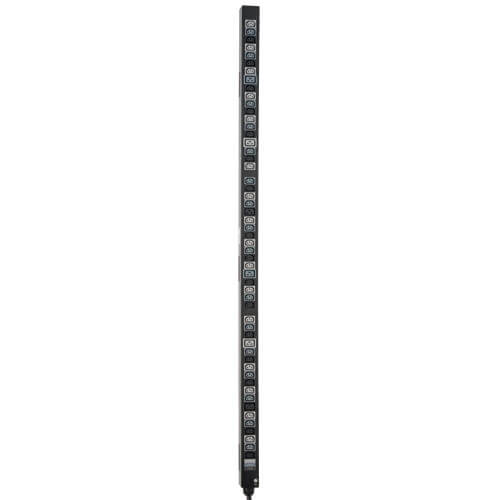

Tripp-Lite PDU3V20D354B | 8.6/12.6kW 3-Phase Vertical PDU Strip, 208V Outlets (48 C13 & 6 C19), 0U Rack-Mount, Accessory for Select ATS PDUs

Features

• Required Accessory for Select Tripp Lite ATS PDUs
• Compatible with PDU330AT6L15, PDU330AT6L2130, PDU330AT6L1530, PDU350AT6H50 and other select Tripp Lite 3-phase ATS PDUs
• Ideal for high-density equipment racks in data centers and server rooms
• Supports up to 12.6kW total output with 20A maximum per output bank when connected to 208V ATS models with a 35A input rating (such as PDU350AT6H50)
• Supports up to 8.6kW total output with 13.9A maximum per output bank when connected to 208V ATS models with a 24A input rating (such as PDU330AT6L2130, PDU330AT6L1530 or PDU330AT6L15)
• Heavy-duty 2.5-ft. (0.76 m) power cord plugs directly into the ATS PDU with a Unique 8-position plug
• Features 48 C13 and 6 C19 Outlets
• Single-phase 208V outlets are interlaced to help you balance loads by spreading connections across the phase combinations (L1-L2, L2-L3, L3-L1) throughout the rack
• Numbered and color-coded for easy identification of connected devices and which phase combination output bank powers them
• Installs Easily in 0U of Rack Space
• Preinstalled mounting buttons for toolless vertical mounting in compatible racks
• Saves rack space, improves airflow and reduces cord clutter by locating outlets closer to connected devices
• Preinstalled ground screw for connecting devices that require chassis ground
• Heavy-duty all-metal housing provides durability and reliability in demanding high-density rack environments
