Brand: Tripp-Lite | SKU: 549859

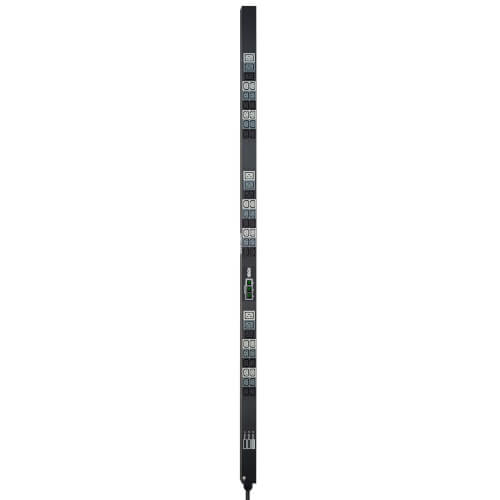

Tripp-Lite PDU3XMV6G20 | 11.5kW 3-Phase Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical

$1,046.63

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp-Lite PDU3XMV6G20 | 11.5kW 3-Phase Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical

Features

11.5kW Metered Power Distribution Unit (PDU)
380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection
208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported
Outlets are arranged in 3 metered 15 outlet load banks
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant

Specifications

Highlights

Metered 11.5kW 3 Phase 360-415V input / 208-240V output PDU
Set of 3 digital meters reports output load level per phase in amps
70in / 1778mm 0U vertical format, toolless button-mount installation
IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord
36 C13 & 9 C19 single phase outlets; Included cord retention brackets

Package Includes

Metered rackmount PDU with pre-installed mounting buttons
Cord retention brackets
Spare installation buttons (2 9mm / 4 6mm)
Rack mounting brackets
Owner's manual

Overview

UPC Code	37332163912
PDU Type	Metered

Input

PDU Input Voltage	360-415V
Recommended Electrical Service	Three-phase 16A 360-415V service
Maximum Input Amps	16
PDU Plug Type	IEC-309 16/20A RED (3P+N+E)
Input Phase	3-Phase
Input Cord Length (ft.)	6

Output

Output Capacity Details	11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V), 10kW (360/208V) total capacity; 16A max per output phase (L1-L2, L2-L3, L3-L1); 16A max per C19 outlet; 12A max (10A CE) per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(36) C13; (9) C19
Output Nominal Voltage	208-240V
Overload Protection	-

User Interface, Alerts & Controls

Reported Load Segments	Supports local monitoring of current for each output phase (16A balanced max per output load banks L1, L2 and L3); Outlets are color-coded and labeled for easy phase and load bank identification; L1-N feeds black outlets; L2-N feeds dark-gray outlets; L3-N feeds light-gray outlets
Front Panel LCD Display	Set of 3 digital meters report per-phase output current in amps (L1, L2, L3)

Physical

Form Factors Supported	Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Material of Construction	Metal

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +50°C (-22°F to +122°F)
Relative Humidity	5 to 95% non-condensing

Standards & Compliance

Certifications	NOM (Mexico), CE (EU), Class A (Emissions), RoHS (Hazardous Substances), TAA Compliant

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty
