Brand: Tripp-Lite
|
SKU:
812667

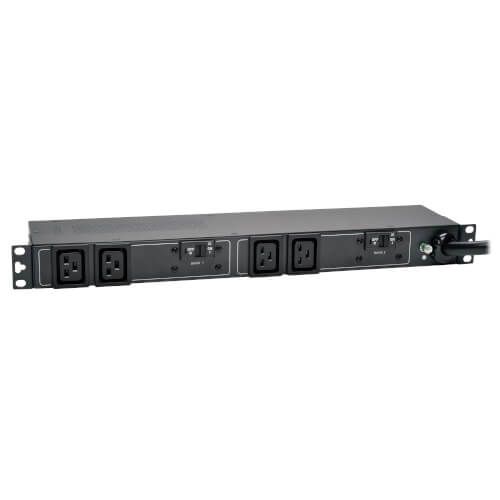

Tripp-Lite PDUH30HV19 | 5.8kW Single-Phase 200-240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount
Regular price
$609.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The PDUH30HV19 5/5.8kW Single-Phase 200-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH30HV19 features four rear outlets. The NEMA L6-30P input plug with 12-ft. (3.66 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment. The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
Features
- Reliable Single-Phase 24A 200-240V Power Distribution
- Ideal no-frills PDU for data centers, server rooms and network wiring closets
- 4 rear C19 outlets
- NEMA L6-30P input plug with 12-ft. (3.66 m) power cord
- Rear-panel grounding lug
- Dual 20A circuit breakers protect against overloads
- Switchless Design
- Prevents accidental shutdowns and costly downtime
- Versatile Installation Options
- Reversible all-metal housing faces front or rear in rack
- Supports 1U horizontal or 0U vertical mounting in EIA-standard 19 in. racks
- Also mounts on wall, workbench or under a counter
Special Features
| TVSS Grounding | Rear grounding lug |
|---|
Specifications
Specifications
Package Includes
- PDUH30HV19 5.8kW Single-Phase 200-240V Basic PDU
- Mounting hardware
- Owner’s manual
Highlights
- NEMA L6-30P input with 12-ft. (3.66 m) power cord
- 4 rear C19 outlets
- Switchless design prevents accidental shutdown
- Reversible all-metal housing
- Dual 20A circuit breakers protect against overloads
Overview
| UPC Code | 37332183194.0 |
|---|---|
| PDU Type | Basic |
Input
| PDU Input Voltage | 200-240V |
|---|---|
| Recommended Electrical Service | Single-phase 30A 200-240V service |
| Maximum Input Amps | 24 |
| Maximum Input Amps Details | 30A maximum (agency de-rated to 24A continuous) |
| PDU Plug Type | NEMA L6-30P |
| Input Phase | Single-Phase |
Output
| Output Capacity Details | 5.8kW (240V), 5.5kW (230V), 5.3kW (220V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (4) C19 |
| Output Nominal Voltage | 200-240V |
| Overload Protection | 2 20A breakers protect 2 C19 outlets each |
User Interface, Alerts & Controls
| Switches | - |
|---|
Physical
| Form Factors Supported | 1U rackmount, 0U vertical mount, wallmount and under-counter |
|---|---|
| Material of Construction | Metal |
Environmental
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 5-95% non-condensing |
Standards & Compliance
| Certifications | Tested to UL60950-1 (USA); CSA-C22.2 (Canada); RoHS |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for Basic Rack PDU (Multi-language)
- 120V Power Distribution Unit (PDU) Models and Specifications List (English)
- 120V Power Distribution Unit (PDU) Brochure (English)
- 230V Power Distribution Unit (PDU) Brochure (English)
- Integrated Solutions Brochure (English)
- PDU Buying Guide
- PDU Installation Options
- Custom Products from Tripp Lite Are One Call Away
- Outlet Plug Types
- 7 Steps to Choosing the Right Single-Phase or 3-Phase PDU
- PDU Types
- Product Videos
- Download images for this product
