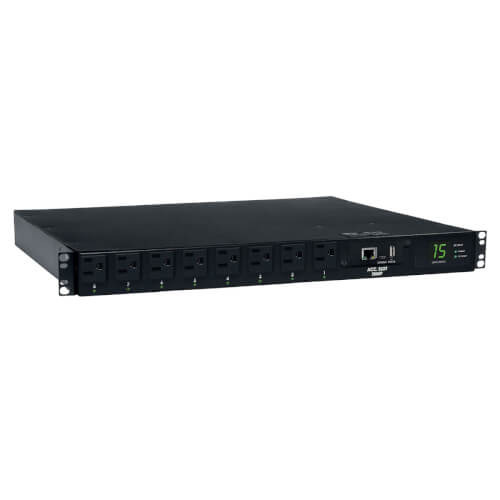

Tripp-Lite PDUMH15ATNET | 1.4kW Single-Phase Switched Automatic Transfer Switch PDU, 2 120V 5-15P 15A Inputs, 8 5-15R Outputs, 1U, TAA

Features

• 120V 15A Automatic Transfer Switch (ATS) / Switched PDU (Agency de-rated to 12A continuous)
• Provides a redundant A/B power option for non-redundant networking equipment with a single input power cord
• Switched PDU features enable programmable or real-time power control of individual outlets via built-in network interface
• Digital display continuously reports total output power consumption in amps
• 8 switched NEMA 5-15R outlets
• 1U horizontal rackmount form factor; 14.5 in. / 36.8 cm depth
• Set of two 12 ft. / 3.6m NEMA 5-15P input cables support connection to separate PRIMARY and SECONDARY power sources
• ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
• ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
• Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
• On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
• Super-fast switchover between primary and secondary power sources occurs in 2-7 milliseconds
• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• IP-based Auto Probe detects lost connectivity and restores service autonomously
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
• Outlets are factory programmed for sequential turn-on at 250 millisecond intervals as the PDU is first energized
• Front panel LEDs confirm power availability on both input lines
• Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
