Brand: Tripp-Lite
|
SKU:
871847

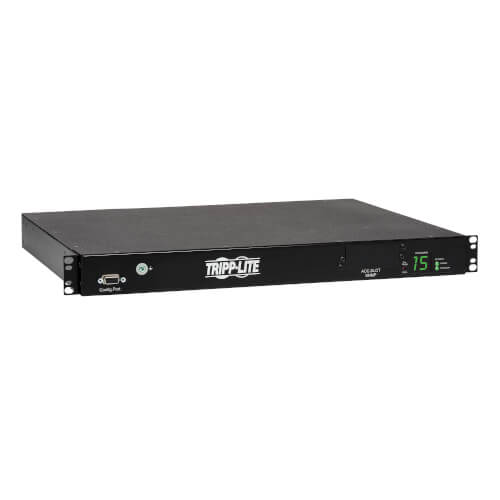

Tripp-Lite PDUMH15HVAT | 2.4kW Single-Phase Metered Automatic Transfer Switch PDU, Two 200-240V C14 Inlets, 10 C13 Outputs, 1U, TAA
Regular price
$765.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PDUMH15HVAT | 2.4kW Single-Phase Metered Automatic Trans...
Regular price
$765.13
Unit price
Description
Description
The PDUMH15HVAT 2–2.4kW Single-Phase 200–240V Metered Automatic Transfer Switch / ATS PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets. Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200–240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in slot supports the optional WEBCARDLX (sold separate), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
Features
- Primary and Secondary Inputs for Power Redundancy
- Enables redundant power for network devices with non-redundant power supply configurations
- Dual 3.6 m input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources
- 10 C13 outlets
- Automatic Transfer Switching
- Dynamic solid-state (TRIAC) automatic transfer switching
- Switches to secondary power source if primary source fails or becomes unstable
- 2–5 ms transfer time ensures uninterrupted operation of connected equipment
- Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source
- Digital Load Meter
- Easy-to-read ammeter displays total current used by connected equipment
- LED Indicators
- Individual LEDs display outlet on/off status and input power status on primary and secondary inputs
- Advanced Network Monitoring Options
- Built-in card slot accommodates SNMPWEBCARD and WEBCARDLX accessories (sold separately)
- Optional cards create a switched PDU by allowing remote access for power monitoring, configuration, outlet control and notification via web browser, SSH, telnet or SNMP
- Mounts Horizontally in 1U of Rack Space
- Compatible with EIA-standard 19 in. racks
- TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
Specifications
Highlights
- Single-phase IEC-320 C14 input and 200–240V output
- 10 C13 outlets
- Automatic transfer switching within 5 ms
- Mounts in 1U of space in EIA-standard 19 in. racks
- Digital load meter for real-time output current monitoring
Package Includes
- PDUMH15HVAT TAA-Compliant 2–2.4kW Single-Phase ATS/Metered PDU
- (10) C14 plug lock inserts
- (2) C13 to C14 power cords, 3.6 m (11.8 ft.)
- Rack mounting hardware
- (6) Screws
- Owner’s manual
Overview
| UPC Code | 37332197900 |
|---|---|
| PDU Type | Metered; Auto-Transfer Switch |
Input
| PDU Input Voltage | 200-240V DUAL INPUT |
|---|---|
| Recommended Electrical Service | Two single-phase 10A 200-240V circuits |
| Maximum Input Amps | 10 |
| PDU Plug Type | (2) IEC-320 C14 |
| Input Phase | Single-Phase |
| Input Cord Details | Set of 2 C14 inlets and two included cordsets enable connection to separate PRIMARY and SECONDARY power sources |
Output
| Output Capacity Details | 2.4kW (240V), 2.3kW (230V), 2.2kW (220V), 2.08kW (208V), 2.0kW (200V) / 10A total capacity |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (10) C13 |
| Output Nominal Voltage | 200-240V |
| Overload Protection | - |
| Customized Load Management Receptacles | Adding supported Network Management Card accessory offers upgrade path to switched PDU (8 C13 outlets are switchable upon upgrade); Network Management Card also can be inserted temporarily as a configuration tool to custom program power-on and power-off C13 outlet sequences with user-specified time delays in response to loss and restoration of primary input |
User Interface, Alerts & Controls
| Front Panel LCD Display | Digital display reports total PDU output current in amps |
|---|---|
| Front Panel LEDs | 8 LEDs display power on-off status for each C13 output receptacle, plus 2 additional LEDs to indicate input power status for primary and secondary inputs |
| Switches | Toggle switch near digital display enables the setting of "HI" for 220, 230 or 240V nominal applications or "LO" for 200 or 208V applications |
Physical
| Form Factors Supported | 1U rackmount |
|---|---|
| Material of Construction | Steel |
Environmental
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 5-95% (non-condensing) |
Communications
| Network Management Cards | SNMPWEBCARD ; WEBCARDLX |
|---|
Standards & Compliance
| Certifications | Tested to UL 60950-1 (USA; Canada); CE (EU); NOM (Mexico); GOST (Russia); EN55032:2015 and EN62040-2:2006; FCC Class A (Emissions); RoHS Complaint; TAA Compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
