Brand: Tripp-Lite | SKU: 523982

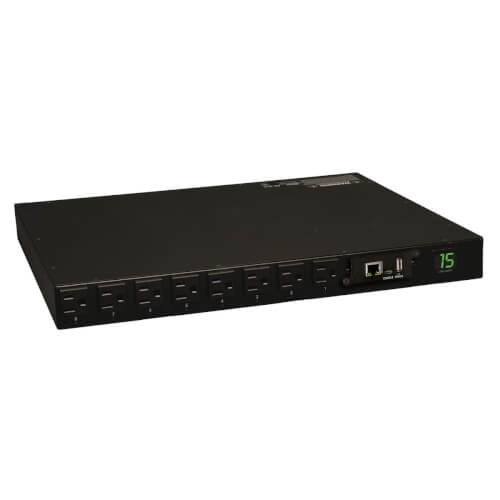

Tripp-Lite PDUMH15NET | 1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 5-15P, 120V Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

$882.82

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp-Lite PDUMH15NET | 1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 5-15P, 120V Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Features

15A 120V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 12A continuous)
Attached NEMA 5-15P 120V single phase input; 12-ft. (3.66 m) cord
1U horizontal rackmount form factor
16 switched NEMA 5-15R outlet (8 front / 8 rear)
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage and total output load level in amps
Digital display continuously reports total output load level in amps
Supports user-specified alarm notification thresholds
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
1U horizontal rack installation supported in 2 or 4 post racks with included mounting brackets
Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
Included cord retention brackets
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

Special Features

TVSS Grounding	Rear grounding lug
High Availability PDU Features	Auto Probe Monitoring and Reboot (included)

Specifications

Highlights

Switched 12A 120V PDU, 1U horizontal rackmount format
Reports voltage, frequency & load level via Ethernet interface
Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
NEMA 5-15P input with attached 12-ft. (3.66 m) line cord
16 NEMA 5-15R switched outlets with cord retention brackets
Temperature, humidity and contact closure monitoring options
TAA Compliant

Package Includes

PDUMH15NET Switched PDU
Installable 1U mounting brackets
Configuration cable
User manual

Overview

UPC Code	37332157690.0
PDU Type	Switched

Input

PDU Input Voltage	120V
Recommended Electrical Service	Single-phase 15A 120V service
Maximum Input Amps	12
Maximum Input Amps Details	Agency de-rated to 12A continuous
PDU Plug Type	NEMA 5-15P
Input Phase	Single-Phase

Output

Output Capacity Details	1.44kW (120V) / 12A total capacity; 12A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(16) 5-15R
Output Nominal Voltage	120V
Overload Protection	-
Customized Load Management Receptacles	16 individually switched output receptacles

User Interface, Alerts & Controls

Front Panel LCD Display	Digital display reports total PDU output current in amps
Front Panel LEDs	16 LEDs display power on-off status for each output receptacle
Switches	-

Physical

Form Factors Supported	1U rackmount
Material of Construction	Metal

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +50°C (-22°F to +122°F)
Relative Humidity	5 to 95% (non-condensing)

Communications

SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Standards & Compliance

Certifications	Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty

Documents and Downloads
