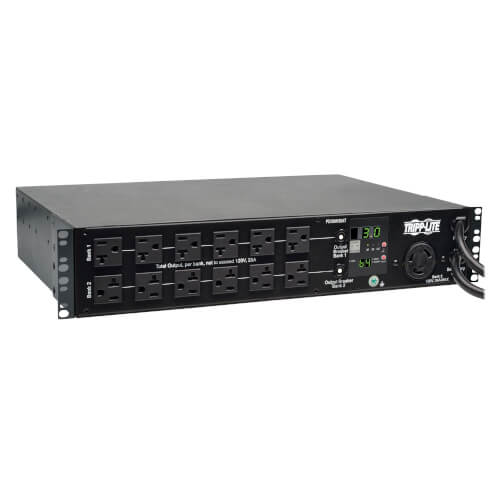

Tripp-Lite PDUMH30AT | 2.9kW Single-Phase Metered Automatic Transfer Switch PDU, 2 120V L5-30P Inputs, 24 5-15/20R & 1 L5-30R Outputs, 2U, TAA

Features

• 120V 30A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 24A continuous)
• Provides a redundant A/B power option for non-redundant networking equipment with a single input power cord
• Visual meter reports output amp and kW power consumption, plus input voltage
• 2U horizontal rackmount form factor; 11.9 in. / 30.2 cm depth
• 25 outlets (24 5-15/20R, 1 L5-30R)
• Set of two 10-ft. / (3.05 m) NEMA L5-30P input line cords enable separate PRIMARY and SECONDARY input connections
• ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
• Highly reliable solid-state switching enables fast 1-5 millisecond transfer between primary and secondary inputs
• ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
• Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
• On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
• Front panel LEDs confirm power availability on both input lines
• Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

Special Features
