Brand: Tripp-Lite | SKU: 381568

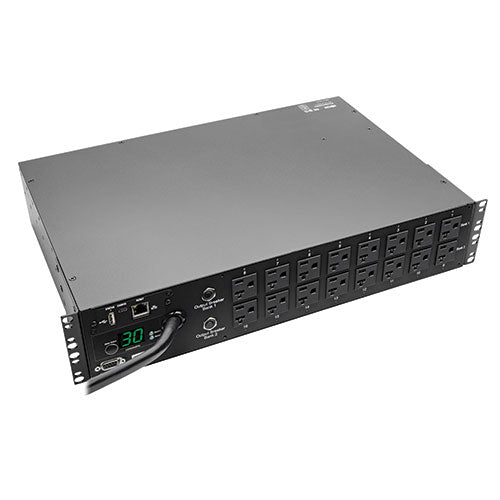

Tripp-Lite PDUMH30NET | 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15/20R), 10 ft. (3.05 m) Cord with L5-30P, 2U, TAA

$1,272.97

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

2.9kW switched PDU distributes, monitors and manages single-phase power in an IT environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

Distributes, Monitors and Manages Network-Grade AC Power
2.9kW 120V switched PDU with single-phase input
NEMA L5-30P plug with 10-ft. (3.05 m) cord connects to compatible AC power source
Firmware upgrades support future product enhancements
16 Switched NEMA 5-15/20R Outlets Distribute AC Power
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Included cord retention brackets prevent cables from becoming accidentally disconnected
Digital Ammeter
Reports current for each load bank and total connected PDU load
Built-In LX Platform Interface
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
Essential Safety Features
Tiered access allows administrator and guest to log in via web browser
Immediate alert notifications via email or SNMP traps
Supports user-specified alarm notification thresholds
Real-time clock backup maintains day/date even if PDU is unpowered
Easy 2U Installation in EIA-Standard 19 in. Racks
Rack-mounting hardware included for front- or rear-facing installation
Under-counter mounting also available with included hardware and user-supplied screws
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Special Features

High Availability PDU Features	Auto Probe Monitoring and Reboot (included)

Specifications

Package Includes

PDUMH30NET 2.9kW Single-Phase Switched PDU
Built-in LX Platform interface
Configuration cable
Cord retention brackets
(16) Cable ties
Rack-mounting hardware
Owner’s manual

Highlights

2.9kW 120V single-phase 2U rack-mount switched PDU
16 controllable NEMA 5-15/20R outlets in 2 load banks
Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
Digital ammeter for on-site load monitoring in real time
NEMA L5-30P input with 10-ft. (3.05 m) AC power cord

Overview

UPC Code	37332139313.0
PDU Type	Switched

Input

PDU Input Voltage	120V
Recommended Electrical Service	Single-phase 30A 120V service
Maximum Input Amps	24
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L5-30P
Input Phase	Single-Phase

Output

Output Capacity Details	2.88kW (120V) / 24A total capacity; 20A max per breakered load bank; 16A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(16) 5-20R
Output Nominal Voltage	120V
Overload Protection	Two 20A breakers protect 8 outlets each
Customized Load Management Receptacles	Each outlet is individually controllable via remote interface

User Interface, Alerts & Controls

Front Panel LCD Display	Digital current display with toggle switch reports output load level in 3 segments (Bank 1: Outlets #1-8, Bank 2: Outlets #9-16, Bank 3: All outlets combined)
Front Panel LEDs	16 power availability LEDs confirm power off/on status for each built-in outlet. Two additional LEDs with toggle button identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Bank 1&2 combined); WEBCARDLX: Link/Activity LED (Yellow), Network Speed (Green), LX operational status LED (Green))
Switches	Toggle switch advances the digitial display to report output current on Bank 1, Bank 2 or Banks 1&2 combined; WEBCARDLX : Recessed reset switch to reboot or reset network card to factory defaults

Physical

Form Factors Supported	2U rackmount. Includes 2U mounting accessories for 4 post and 2 post rack installation
Material of Construction	Metal

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +50°C (-22°F to +122°F)
Relative Humidity	5-95% non-condensing

Communications

SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Standards & Compliance

Certifications	Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty
