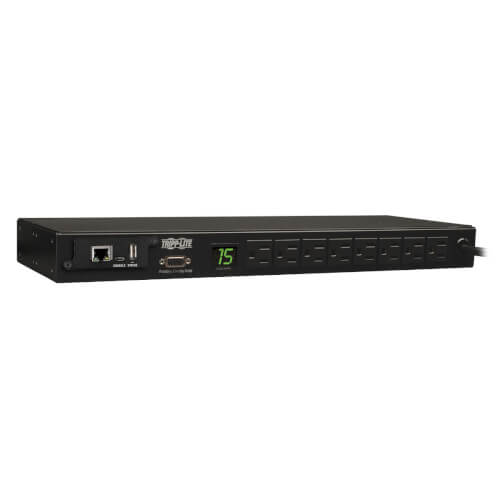

Tripp-Lite PDUMNH15 | 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

$678.99

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp-Lite PDUMNH15 | 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Features

15A single phase 120V Monitored Power Distribution Unit / PDU (agency derated to 12A continuous)
Attached NEMA 5-15P input plug with 12-ft. (3.66 m) line cord
1U horizontal rackmount installation format supports installation in 2 or 4 post equipment racks
8 NEMA 5-15R outlets
Lighted display reports output power consumption in amps
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets keep vital network equipment plugged in and continuously powered
TAA Compliant

Special Features

High Availability PDU Features	Auto Probe Monitoring (included)

Specifications

Highlights

Monitored 12A 120V PDU, 1U horizontal rackmount format
Reports voltage, frequency & load level via ethernet interface
Visual current meter, Reversible housing
NEMA 5-15P input with attached 12-ft. (3.66 m) line cord
8 NEMA 5-15R outlets with included cord retention brackets
Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management

Package Includes

Rackmount PDU
Rack mounting brackets
Owner's manual

Overview

UPC Code	37332152022.0
PDU Type	Monitored

Input

PDU Input Voltage	120V
Recommended Electrical Service	Single-phase 15A 120V service
Maximum Input Amps	12
PDU Plug Type	NEMA 5-15P
Input Phase	Single-Phase
Input Cord Length (ft.)	12

Output

Output Capacity Details	1.44kW (120V) / 12A total capacity; 12A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(8) 5-15R
Output Nominal Voltage	120V
Overload Protection	-

User Interface, Alerts & Controls

Front Panel LCD Display	Digital meter reports PDU output current in amps
Front Panel LEDs	-
Switches	-

Physical

Form Factors Supported	1U horizontal rackmount in 2 or 4 post racks
Material of Construction	Metal

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +50°C (-22°F to +122°F)
Relative Humidity	5 to 95% non-condensing

Communications

SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Standards & Compliance

Certifications	Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty
