Brand: Tripp-Lite
|
SKU:
565322

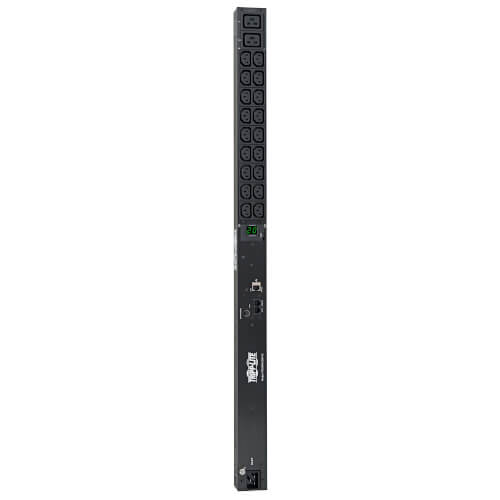

Tripp-Lite PDUMNV20HV2 | 3.2-3.8kW Single-Phase Monitored PDU, 200-240V Outlets (18-C13 & 2-C19), C20/L6-20P, 0U Vertical, 35.5 in., TAA
Regular price
$508.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PDUMNV20HV2 | 3.2-3.8kW Single-Phase Monitored PDU, 200-...
Regular price
$508.01
Unit price
Description
Description
Tripp-Lite PDUMNV20HV2 | 3.2-3.8kW Single-Phase Monitored PDU, 200-240V Outlets (18-C13 & 2-C19), C20/L6-20P, 0U Vertical, 35.5 in., TAA
Features
- 200/208/230/240V Monitored PDU with built-in network interface in 0U 35.5 in. / 90.2cm rackmount form factor; 20A maximum capacity (agency de-rated to 16A)
- C20 inlet supports user supplied input cabling; 10ft / 3m L6-20P power cord included
- 20 outlets (18 C13 & 2 C19)
- 0U 35.5in / 90.2cm vertical rackmount form factor
- Network interface provides PDU control and data regarding input voltage, frequency and loading information
- Digital display reports load level information in amps
- Supports user-specified alarm notification thresholds
- In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login simultaneously
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Fully compatible with FREE PowerAlert Network Management System / NMS Software
- Included cord retention brackets
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
- Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
Specifications
Specifications
Package Includes
- Rackmount PDU
- Plug retention plates
- Rack mounting brackets
- Owner's manual
Overview
| UPC Code | 37332162564.0 |
|---|---|
| PDU Type | Monitored |
Input
| Recommended Electrical Service | 20A 208/240V; 16A 230V |
|---|---|
| Maximum Input Amps | 20 |
| Maximum Input Amps Details | Agency derated to 16A continuous |
| Input Connection Type | C20 inlet accepts included L6-20P input cable. Alternate C19 input cordsets supported. |
| PDU Plug Type | NEMA L6-20P; IEC-320 C20 |
| Input Phase | Single-Phase |
Output
| Output Capacity Details | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (18) C13; (2) C19 |
| Output Nominal Voltage | 200; 208; 220; 230; 240 |
| Overload Protection | - |
User Interface, Alerts & Controls
| Front Panel LCD Display | Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top |
|---|---|
| Front Panel LEDs | - |
| Switches | Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees |
Physical
| Form Factors Supported | 0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks |
|---|---|
| PDU Form Factor | Vertical (0U) |
Environmental
| Storage Temperature Range | 5 to 122F (-15 to 50C) |
|---|---|
| Relative Humidity | 5-95% non-condensing |
| Operating Elevation (ft.) | 0-10,000 |
Communications
| SNMP Compatibility | Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, and SNMP management systems |
|---|
Standards & Compliance
| Certifications | Tested to UL 60950-1 (USA; Canada); CE (International); Class A (Emissions); NOM (Mexico); RoHS compliant; TAA Compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for Rack PDUs
- PDUMNV20HV2 Submittal Drawing
- 120V Power Distribution Unit (PDU) Brochure (English)
- 120V Power Distribution Unit (PDU) Models and Specifications List (English)
- 230V Power Distribution Unit (PDU) Specification Brochure (English)
- 230V Power Distribution Unit (PDU) Brochure (English)
- Integrated Solutions Brochure (English)
- EC Declaration
- PDU Buying Guide
- PDU Installation Options
- Custom Products from Tripp Lite Are One Call Away
- Outlet Plug Types
- 7 Steps to Choosing the Right Single-Phase or 3-Phase PDU
- PDU Types
