Brand: Tripp-Lite | SKU: 9810616

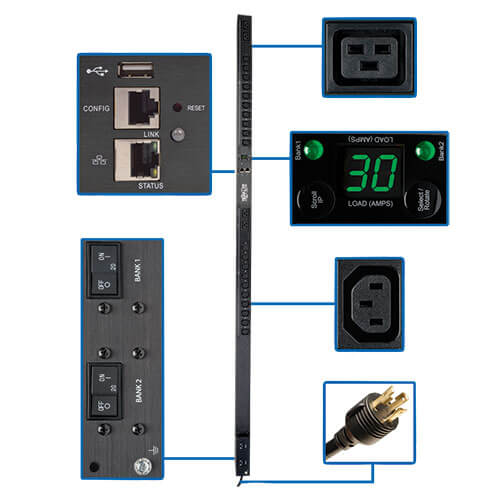

Tripp-Lite PDUMNV30HVLX | 5.5kW Single-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA

$1,043.69

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Cost-effective 5.5kW PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in network interface helps monitor load levels to prevent overloads that cause downtime.

Features

Distributes Network-Grade Single-Phase Power
5/5.8kW 208/230V 24A monitored PDU with single-phase input/output
NEMA L6-30P with 10-ft. (3.05 m) cord connects to compatible AC power source
Firmware upgrades support future product enhancements
24 Outlets Distribute AC Power
20 C13 and 4 C19 outlets split into 2 separate load banks
Cord retention bracket prevents cables from becoming accidentally disconnected
Digital Ammeter
Reports total connected equipment load
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility
Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Special Features

High Availability PDU Features	Auto Probe Monitoring (included)

Specifications

Package Includes

PDUMNV30HVLX 5.5kW Single-Phase Monitored PDU
Configuration cable
(24) Cable ties
(2) Cord retention brackets
Rack-mounting hardware
PDUMVROTATEBRKT mounting bracket accessory
Owner’s manual

Highlights

5.5kW 208/230V 24A monitored PDU
24 outlets—20 C13, 4 C19—with cord retention brackets
NEMA L6-30P input with 10-ft. (3.05 m) AC power cord
Digital ammeter for on-site load monitoring in real time
Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management

Overview

UPC Code	37332204479.0
PDU Type	Monitored

Input

PDU Input Voltage	208/230V
Recommended Electrical Service	Single-phase 30A 208/230V service
Maximum Input Amps	24
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L6-30P
Input Phase	Single-Phase

Output

Output Capacity Details	5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(20) C13; (4) C19
Output Nominal Voltage	208/230V
Overload Protection	Two 20A breakers protect 12 outlets each
Customized Load Management Receptacles	-

User Interface, Alerts & Controls

Front Panel LCD Display	Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
Front Panel LEDs	Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-12; Bank 2 LED indicates the meter is reporting load level for outlets 13-24; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Switches	Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees
Current Measurement Accuracy (Amps)	+/-2%

Physical

Form Factors Supported	0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
Material of Construction	Metal

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +60°C (-22°F to +140°F)
Relative Humidity	5-95% non-condensing

Communications

SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Standards & Compliance

Certifications	Tested to UL/CAN 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Compliant, TAA Compliant

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty
