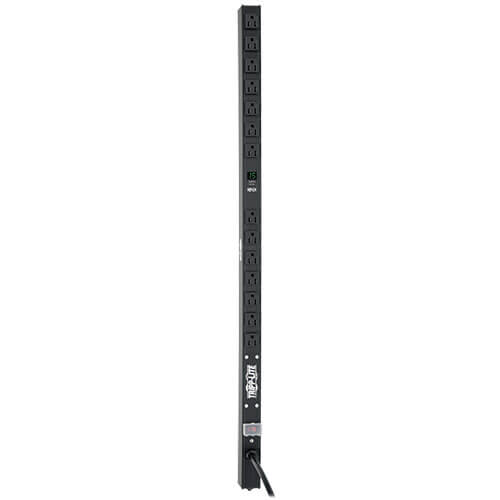

Tripp-Lite PDUMV15-36 | 1.5kW Single-Phase Metered PDU, 100-127V Outlets (14 5-15R), 5-15P, 15 ft. (4.57 m) Cord, 0U Vertical, 36 in.
Features
- 12A single phase 100-127V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- Two-digit lighted meter reports combined total output current in amps
- Attached NEMA 5-15P 15A 100-127V input plug with 15-ft. (4.57 m) line cord
- 0U 36in / 91cm vertical rackmount format installs using no rack spaces
- 14 NEMA 5-15R outlets
- Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
Specifications
Specifications
Highlights
- Metered single phase 12A 100-127V 0U 36in / 91cm vertical rackmount PDU
- Two-digit current meter reports output current in amps
- Attached 15-ft. (4.57 m) cord with NEMA 5-15P input plug
- 14 NEMA 5-15R outlets
- Toolless button mount and bolt-down bracket installation hardware included
Package Includes
- Metered Vertical PDU
- Mounting hardware and spare mounting buttons
- Owner's manual with warranty information
Overview
| UPC Code | 37332182869.0 |
|---|---|
| PDU Type | Metered |
Input
| PDU Input Voltage | 100-127V |
|---|---|
| Recommended Electrical Service | Single-phase 15A 100-127V service |
| Maximum Input Amps | 12 |
| Maximum Input Amps Details | Agency de-rated to 12A continuous |
| PDU Plug Type | NEMA 5-15P |
| Input Phase | Single-Phase |
Output
| Output Capacity Details | 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 12A total capacity; 12A max per outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output (VA) | 1800 |
| Output Receptacles | (14) 5-15R |
| Output Nominal Voltage | 100-127V |
| Overload Protection | 15A circuit breaker |
User Interface, Alerts & Controls
| Front Panel LCD Display | Digital meter reports PDU output current in amps |
|---|---|
| Switches | Lighted on/off switch with integrated safety cover |
Physical
| Form Factors Supported | Vertical (0U) mounting in rack enclosures, horziontal mount in raceways and a variety of other applications |
|---|---|
| Material of Construction | Aluminum |
Environmental
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 5-95% non-condensing |
Standards & Compliance
| Certifications | Tested to UL60950-1 (USA) and CSA60950-1 (Canada), NOM (Mexico), Class A (Emissions), RoHS Compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
