Brand: Tripp-Lite | SKU: 641213

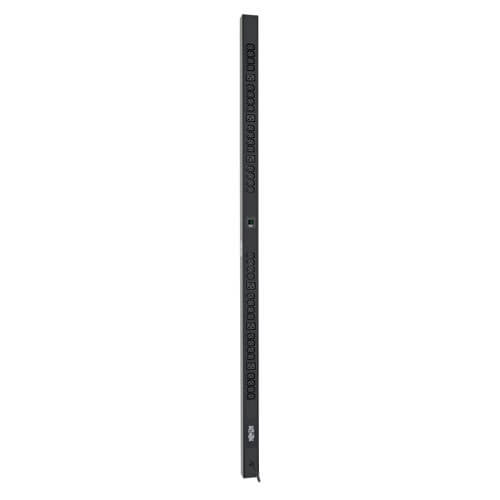

Tripp-Lite PDUMV16HV | 3.7kW Single-Phase Metered PDU, 208/230V Outlets (32-C13, 6-C19), IEC309 16A Blue 16A, 0U Vertical

$609.30

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Features

3.84kW 16A single phase 208/230V Metered Power Distribution Unit / PDU
Two-digit lighted meter reports combined total output current in amps
10ft / 3m input cable with Blue IEC309 16A input plug
0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces
38 total outlets (6 C19, 32 C13)
Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces

Specifications

Package Includes

PDUMV16HV 63.75 inch metered PDU with owner's manual
Plug-lock cord retention sleeves (32 C14 and 6 C20)
Set of mounting brackets and installation hardware

Highlights

Metered single phase 16A 208/230V 0U 63.75in / 162cm vertical rackmount PDU
Two-digit meter reports output current in amps
10ft / 3m input cable with IEC309 Blue 16A input connection
38 output receptacles (6 C19, 32 C13), included plug-lock cord retention sleeves
Toolless button mount and bolt-down bracket installation hardware included

Overview

UPC Code	37332182876.0
PDU Type	Metered

Input

PDU Input Voltage	208/230V
Recommended Electrical Service	Single-phase 16/20A 230/208V service
Maximum Input Amps	16
PDU Plug Type	IEC-309 16A BLUE (2P+E)
Input Phase	Single-Phase
Input Cord Length (ft.)	10

Output

Output Capacity Details	3.7kW (230V), 3.3kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(32) C13; (6) C19
Output Nominal Voltage	208/230V
Overload Protection	-

User Interface, Alerts & Controls

Front Panel LCD Display	Digital meter reports PDU output current in amps
Switches	-

Physical

Form Factors Supported	0u vertical installation in equipment racks, plus under-counter and wallmount
Material of Construction	Aluminum

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +50°C (-22°F to +122°F)
Relative Humidity	0-95% non-condensing

Standards & Compliance

Certifications	Tested to CE (IEC 60950-1), GOST (Russia), Class A (Emissions),

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty

Documents and Downloads
