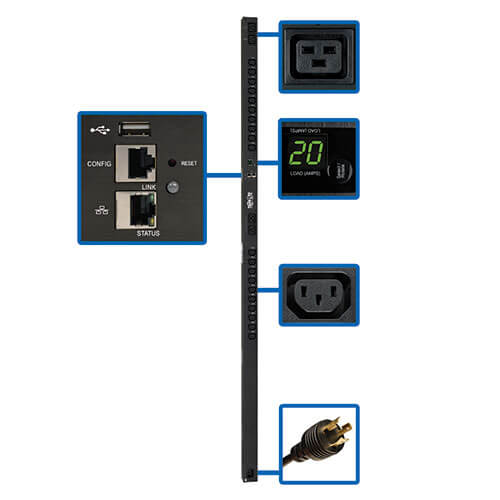

Tripp-Lite PDUMV20HVNETLX | 3.7kW Single-Phase Switched PDU with LX Platform Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA

$1,392.40

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

3.7kW vertical PDU distributes, monitors and manages single-phase power in an IT or industrial environment. Built-in network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

Distributes Network-Grade Single-Phase Power
3.3-3.7kW 208/230V switched PDU
Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
Includes detachable NEMA L6-20P plug with 10-ft. (3.05 m) cord; C20 inlet supports user-supplied international input cabling
Firmware upgrades support future product enhancements
24 Switched Outlets Distribute AC Power
20 C13 and 4 C19 outlets split into 2 separately breakered load banks
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Plug-lock inserts prevent cables from becoming accidentally disconnected
Digital Ammeter
Reports load level on each bank and total PDU output
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
Easy 0U Installation in EIA-Standard 19 in. Racks
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Special Features

High Availability PDU Features	Auto Probe Monitoring and Reboot (included)

Specifications

Highlights

3.3/3.7kW 208/230V switched PDU
24 individually controllable outlets—20 C13, 4 C19
Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
Digital ammeter for on-site load monitoring in real time
C20 inlet with 10ft NEMA L6-20P AC power cord

Package Includes

PDUMV20HVNETLX 3.3-3.7kW Single-Phase Switched PDU
Built-in LX Platform interface
Detachable NEMA L6-20P to C19 power cord, 10-ft. (3.05 m)
Configuration cable
(24) Plug-lock inserts
Rack-mounting hardware
PDUMVROTATEBRKT mounting bracket accessory
Owner's manual

Overview

UPC Code	37332205292
PDU Type	Switched

Input

PDU Input Voltage	208/230V
Recommended Electrical Service	Single-phase 16/20A 230/208V service
Maximum Input Amps	16
Maximum Input Amps Details	Agency de-rated to 16A continuous
Input Connection Type	C20 inlet accepts included L6-20P input cable
PDU Plug Type	NEMA L6-20P; IEC-320 C20

Output

Output Capacity Details	3.68kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(20) C13; (4) C19
Output Nominal Voltage	208/230V
Overload Protection	-
Customized Load Management Receptacles	Each outlet is individually controllable via remote interface

User Interface, Alerts & Controls

Front Panel LCD Display	Digital meter reports PDU output current in amps
Front Panel LEDs	24 power availability LEDs confirm power off/on status for each built-in outlet; LX Platform Interface status LED (Green); Network Link/Activity LED (Yellow), Network Speed LED (Green)
Switches	Push button to rotate digital display and view IP address. LX Platform Interface: Recessed rest switch for interface reboot and factory reset

Physical

Form Factors Supported	0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor	Vertical (0U)

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +60°C (-22°F to +140°F)
Relative Humidity	Up to 95% non-condensing

Communications

Network Monitoring Port	RJ45 Network port; RJ45 Config/Console Access port; USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Standards & Compliance

Certifications	Tested to UL 60950-1:2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), IEC 60950-1: 2005 (CE), FCC Class A, EN55022:2010+2011, EN55024:2010 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty
