Brand: Tripp-Lite | SKU: 381573

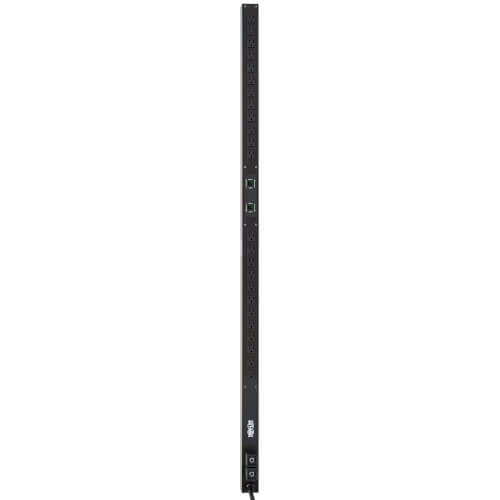

Tripp-Lite PDUMV30 | 2.9kW Single-Phase Metered PDU, 120V Outlets (24 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 0U Vertical

$626.47

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp-Lite PDUMV30 | 2.9kW Single-Phase Metered PDU, 120V Outlets (24 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 0U Vertical

Features

30A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 24A continuous)
Set of two lighted meters report PDU output current in amps for each 12 outlet load bank
Attached NEMA L5-30P 30A 120V input plug with 10ft / 3m line cord
0U vertical rackmount format installs using no rack spaces
24 NEMA 5-15/20R output receptacles
Outlets are arranged in two 12 outlet load banks, each with separate 20A breaker and current metering
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces
Cord retention brackets keep vital equipment plugs connected

Specifications

Highlights

Metered single phase 24A 120V, 0U 63.75in / 162cm vertical rackmount PDU
Pair of digital meters report output current in amps for each load bank
Attached 10ft / 3.0m cord with NEMA L5-30P input plug
24 NEMA 5-15/20R outlets in two separately breakered load banks
Toolless button mount and bolt-down bracket installation hardware included

Package Includes

PDUMV30 63.75 inch basic PDU with owner's manual
Set of 2 bolt-on plug retention brackets and installation hardware
Set of mounting brackets and installation hardware

Overview

UPC Code	37332139337.0
PDU Type	Metered

Input

PDU Input Voltage	120V
Recommended Electrical Service	Single-phase 30A 120V service
Maximum Input Amps	24
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L5-30P
Input Phase	Single-Phase

Output

Output Capacity Details	2.88kW (120V) / 24A total capacity; 20A max per breakered load bank; 16A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(24) 5-15/20R
Output Nominal Voltage	120V
Overload Protection	Two 20A breakers protect 12 outlets each

User Interface, Alerts & Controls

Front Panel LCD Display	Set of 2 digital current meters continuously report PDU output current in amps for Bank 1 (20A max) and Bank 2 (20A max) outlets
Front Panel LEDs	Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 20A loading bank.
Switches	-

Physical

Form Factors Supported	0u vertical installation in equipment racks, plus under-counter and wallmount
Material of Construction	Aluminum

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +50°C (-22°F to +122°F)
Relative Humidity	0-95% non-condensing

Standards & Compliance

Certifications	Tested to UL60950-1 (USA, Canada), NOM (Mexico)

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty
