Brand: Tripp-Lite
|
SKU:
381572

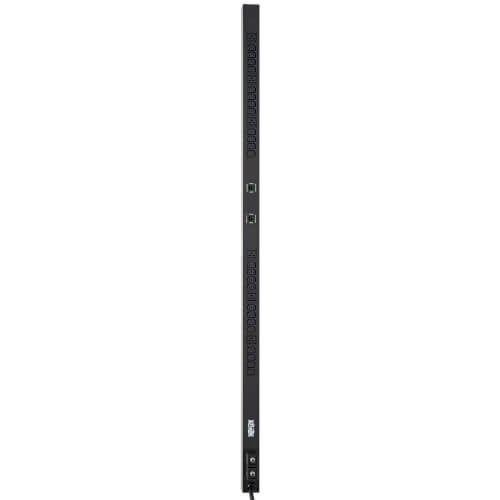

Tripp-Lite PDUMV30HV | 5.5kW Single-Phase Metered PDU, 208/230V Outlets (6-C19 & 24-C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical
Regular price
$619.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PDUMV30HV | 5.5kW Single-Phase Metered PDU, 208/230V Out...
Regular price
$619.37
Unit price
Description
Description
Tripp-Lite PDUMV30HV | 5.5kW Single-Phase Metered PDU, 208/230V Outlets (6-C19 & 24-C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical
Features
- 30A single phase 208/230V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
- Set of two lighted meters report PDU output current in amps for each output load bank
- Attached NEMA L6-30P 30A 208/230V input plug and 10ft / 3m cord
- 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
- 30 output receptacles (6 C19, 24 C13)
- Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering
- Toolless installation in button-mount compatible equipment racks
- Included plug-lock inserts ensure components remain connected and powered
Specifications
Specifications
Highlights
- Metered single phase 24A 208/230V, 0U 63.75in / 162cm vertical rackmount PDU
- Pair of digital meters report output current in amps for each load bank
- Attached 10ft / 3m cord with NEMA L6-30P input plug
- 30 outlets (6 C19, 24 C13) in two separately breakered load banks
- Ready for immediate toolless 0U installation
Package Includes
- PDUMV30HV 63.75 inch Metered PDU
- Plug-lock inserts (6 C20, 24 C14)
- Spare installation buttons, 2.9 mm/4.6 mm
- Set of mounting brackets and installation hardware
- Owner's Manual
Overview
| UPC Code | 37332139351.0 |
|---|---|
| PDU Type | Metered |
Input
| PDU Input Voltage | 208/230V |
|---|---|
| Recommended Electrical Service | Single-phase 30A 208/230V service |
| Maximum Input Amps | 24 |
| Maximum Input Amps Details | Agency de-rated to 24A continuous |
| PDU Plug Type | NEMA L6-30P |
| Input Phase | Single-Phase |
Output
| Output Capacity Details | 5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A),15A max per breakered outlet bank; 12A max per C13 outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (24) C13; (6) C19 |
| Output Nominal Voltage | 208/230V |
| Overload Protection | Two 15A breakers protect 15 outlets each |
User Interface, Alerts & Controls
| Front Panel LCD Display | Set of 2 digital current meters continuously report PDU output current in amps for Bank 1 (15A max) and Bank 2 (15A max) outlets |
|---|---|
| Front Panel LEDs | Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 15A loading bank. |
| Switches | - |
Physical
| Form Factors Supported | 0u vertical installation in equipment racks, plus under-counter and wallmount |
|---|---|
| Material of Construction | Aluminum |
Environmental
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 0-95% non-condensing |
Standards & Compliance
| Certifications | Tested to UL60950-1 (USA, Canada), NOM (Mexico) |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
