Brand: Tripp-Lite
|
SKU:
396486

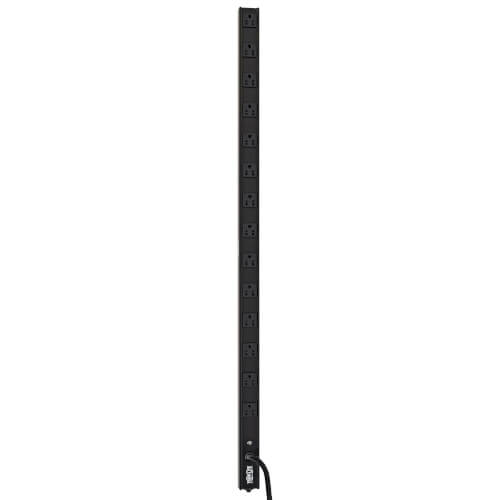

Tripp-Lite PDUV15 | 1.4kW Single-Phase 120V Basic PDU, 14 NEMA 5-15R Outlets, NEMA 5-15P Input, 15 ft. (4.57 m) Cord, 0U Vertical
Regular price
$244.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PDUV15 | 1.4kW Single-Phase 120V Basic PDU, 14 NEMA 5-15...
Regular price
$244.13
Unit price
Description
Description
Delivers 120V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Recommended for data centers, server rooms and network wiring closets.
Features
- Reliable Single-Phase Power Distribution
- Versatile no-frills PDU for data centers, server rooms and network wiring closets
- 14 NEMA 5-15R outlets
- NEMA 5-15P input with 15-ft. (4.57 m) cord
- 15A circuit breaker protects outlets against overloads
- Switchless Design
- Prevents accidental shutdowns and costly downtime
- Versatile Installation Options
- 36 in. all-metal housing
- Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
- Also supports 0U mounting using included hardware
- Rear installation buttons can be relocated to the left or right surface for rear, center or forward-facing outlet orientation
- Also mounts on wall, workbench or under a counter with user-supplied hardware
Specifications
Specifications
Package Includes
- PDUV15 1.44kW Single-Phase 120V Basic PDU
- Mounting brackets
- Owner’s manual
Highlights
- NEMA 5-15P input with 15-ft. (4.57 m) cord
- 14 NEMA 5-15R outlets
- Switchless design prevents accidental shutdown
- 36 in. all-metal housing
- Supports toolless 0U vertical mounting
Overview
| UPC Code | 37332144515.0 |
|---|---|
| PDU Type | Basic |
Input
| PDU Input Voltage | 120V |
|---|---|
| Recommended Electrical Service | Single-phase 15A 120V service |
| Maximum Input Amps | 12 |
| PDU Plug Type | NEMA 5-15P |
| Input Phase | Single-Phase |
| Input Cord Length (ft.) | 15 |
Output
| Output Capacity Details | 1.44kW (120V) / 12A total capacity; 12A max per 5-15R outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (14) 5-15R |
| Output Nominal Voltage | 120V |
| Overload Protection | 15A circuit breaker |
User Interface, Alerts & Controls
| Switches | - |
|---|
Physical
| Form Factors Supported | Vertical (0U) mounting in rack enclosures, horizontal mount in raceways and a variety of other applications |
|---|---|
| Material of Construction | Metal |
Environmental
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 5 to 95% non-condensing |
Standards & Compliance
| Certifications | Tested to UL 60950-1: 2007 R10.14 (USA) and CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 (Canada), NOM (Mexico), RoHS Compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | 5-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for Select Rackmount PDUs
- Single Phase Power Distribution Units (PDUs) Visio Stencil
- Single-Phase Power Distribution Units (PDUs) Stencil Preview
- 230V Power Distribution Unit (PDU) Brochure (English)
- Integrated Solutions Brochure (English)
- 120V Power Distribution Unit (PDU) Models and Specifications List (English)
- 120V Power Distribution Unit (PDU) Brochure (English)
- PDU Buying Guide
- PDU Installation Options
- Custom Products from Tripp Lite Are One Call Away
- Outlet Plug Types
- 7 Steps to Choosing the Right Single-Phase or 3-Phase PDU
- PDU Types
- Product Videos
