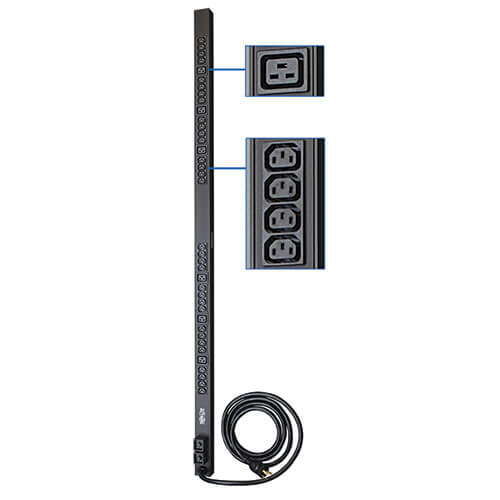

Tripp-Lite PDUV30HV | 5.5kW Single-Phase 208/230V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. (3.05 m) Cord, 0U Vertical
Regular price
$615.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PDUV30HV | 5.5kW Single-Phase 208/230V Basic PDU, 38 Out...
Regular price
$615.39
Unit price
Description
Description
Delivers 208/230V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Recommended for data centers, server rooms and network wiring closets.
Features
- Reliable Single-Phase 24A 208/230V Power Distribution
- Versatile no-frills PDU for data centers, server rooms and network wiring closets
- 38 total outlets—32 C13 and 6 C19
- NEMA L6-30P input plug with 10-ft. (3.05 m) power cord
- Included C20 and C14 plug-lock inserts keep connected plugs secure and continuously powered
- Dual 15A circuit breakers protect outlets against overloads
- Switchless Design
- Prevents accidental shutdowns and costly downtime
- Versatile Installation Options
- 63.75 in. all-metal housing
- Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
- Also supports 0U mounting using included hardware
- Also mounts under a counter or workbench using included brackets and user-supplied hardware
Specifications
Specifications
Package Includes
- PDUV30HV 5.5kW Single-Phase 208/230V Basic PDU
- (38) Plug-lock inserts
- Spare installation buttons, 2.9 mm
- Spare installation buttons, 4.6 mm
- Mounting hardware
- Owner’s manual
Highlights
- NEMA L6-30P input with 10-ft. (3.05 m) power cord
- 38 total outlets—32 C13 and 6 C19
- Switchless design prevents accidental shutdown
- 63.75 in. all-metal housing
- Supports toolless 0U vertical mounting
Overview
| UPC Code | 37332138910.0 |
|---|---|
| PDU Type | Basic |
Input
| PDU Input Voltage | 208/230V |
|---|---|
| Recommended Electrical Service | Single-phase 30A 208/230V service |
| Maximum Input Amps | 24 |
| Maximum Input Amps Details | Agency de-rated to 24A |
| PDU Plug Type | NEMA L6-30P |
| Input Phase | Single-Phase |
Output
| Output Capacity Details | 5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (32) C13; (6) C19 |
| Output Nominal Voltage | 208/230V |
| Overload Protection | Two 15A breakers protect 19 outlets each |
User Interface, Alerts & Controls
| Switches | - |
|---|
Physical
| Form Factors Supported | 0u vertical installation in equipment racks, plus under-counter and wallmount |
|---|---|
| Material of Construction | Metal |
Environmental
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 5-95% non-condensing |
Standards & Compliance
| Certifications | Tested to UL60950-1 (USA, Canada), NOM (Mexico) |
|---|
Warranty
| Product Warranty Period (Worldwide) | 5-year limited warranty |
|---|
