Brand: Tripp-Lite
|
SKU:
565350

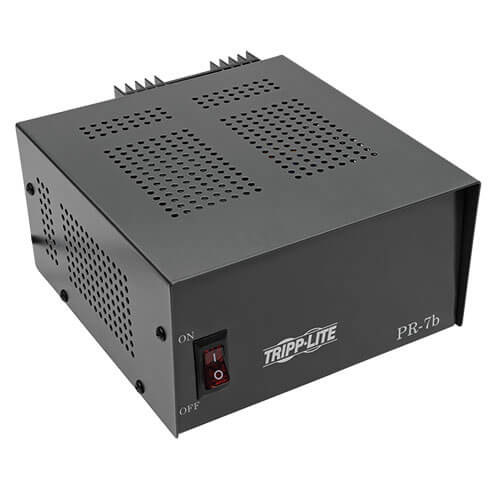

Tripp-Lite PR7 | 7-Amp DC Power Supply, 13.8VDC, Precision Regulated AC-to-DC Conversion
Regular price
$125.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PR7 | 7-Amp DC Power Supply, 13.8VDC, Precision Regulate...
Regular price
$125.32
Unit price
Description
Description
Provide precise DC power from an AC source with this compact
and lightweight DC power supply. The PR7 efficiently converts 120 volts AC into 13.8 volts DC. Its
high power density makes it perfect for a wide range of applications, like home use of single-sideband CB radios, quality control equipment, low power VHF/UHF ham radios, point-of-sale displays, and aquariums.
Features
- Smaller footprint maximizes operating space
- Automatic time-controlled overcurrent protection in case of overload
- Solid state, integrated circuit maintains excellent regulation of output voltage
- Regulated output voltage maintains up to 95% of no load value
- High quality filtering creates very low ripple/low noise operation
- Heavy-duty power transformer provides complete isolation from noise on incoming AC power
- Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit
- Illuminated on/off switch
- Connectors: Hardwire terminals / Red positive (+), Black negative (-)
- Working Temperature Range: 0° C to 40° C (32° F to 104° F), 0 to 95% humidity, non-condensing
- Storage Temperature Range: -15° C to 50° C (5° F to 122° F)
- LED Indicators: Red LED indicates that DC output is being provided
Specifications
Specifications
Highlights
- Smaller footprint maximizes operating space
- Automatic time-controlled overcurrent protection in case of overload
- Solid state, integrated circuit maintains excellent regulation of output voltage
- Regulated output voltage maintains up to 95% of no load value
Overview
| UPC Code | 37332060099.0 |
|---|
Output
| Intermittent (Peak) Amps | 7 |
|---|
Physical
| Shipping Dimensions (hwd / in.) | 4.20 x 9.30 x 6.70 |
|---|---|
| Shipping Weight (lbs.) | 7.00 |
| Unit Dimensions (hwd / in.) | 3.75 x 6.5 x 7.5 |
| Unit Weight (lbs.) | 7 |
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
