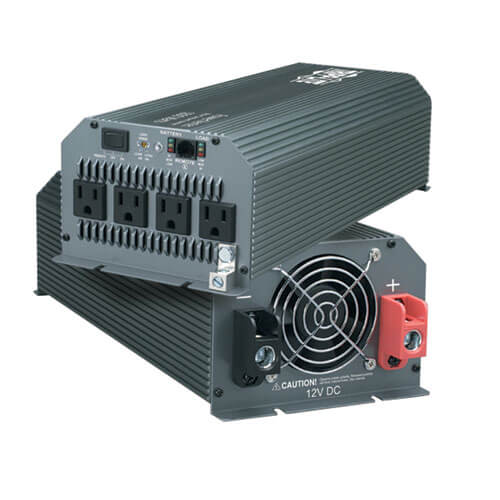

Tripp-Lite PV1000HF | 1000W PowerVerter Compact Inverter for Trucks with 4 Outlets
Features
- Allows users to run AC appliances from any properly-sized 12V battery or automotive DC system
- Converts 12V DC battery power to 120V AC power
- 1000 watts continuous output power; 2000 watts peak output power (instantaneous)
- 4 outlets
- Compact, lightweight design with all-metal housing
- Remote control jack provides optional remote monitoring and control when used with optional remote module (APSRM4, sold separately)
- Low battery alarm with auto-shutoff prevents deep battery discharge
- High-efficiency operation conserves batteries to prolong run time
- Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
- Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
- Operating mode switch controls inverter operation
- Battery Charge Conservation Dial conserves battery power by setting the load-level at which the inverter automatically shuts off
- Cooling fan regulates internal temperature and prolongs service life
- Mounting flanges provide safe, fixed installation
- Grounding lug connects to vehicle ground
- Grooved cooling surface provides additional surface area for more efficient cooling
Specifications
Specifications
Highlights
- 12V DC input; 120V AC output; 4 outlets
- 1000 watts continuous output
- 2000 watts peak output (instantaneous)
- Powers an entire mobile office
Package Includes
- PV1000HF Inverter
- Warranty information
- Instruction manual
Overview
| UPC Code | 37332097187.0 |
|---|
Input
| Recommended Electrical Service | Requires 12V DC input source capable of delivering 100A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 175A battery system fusing is recommended. |
|---|---|
| Maximum Input Amps / Watts | Full continuous load - 100A at 12V DC, No load - 1.5A at 12V DC, Shutdown / load sense mode - 100 micro amps |
| Input Connection Type | Set of 2 DC bolt-down wiring terminals |
| Input Cord Length Details | User supplies cabling. Minimum gauges for full load operation: #4 wire (12 ft max), #2 wire (20 ft max), #0 wire (31 ft max). |
| Voltage Compatibility (VDC) | 12 |
Output
| Frequency Compatibility | 60 Hz |
|---|---|
| Pure Sine Wave Output | No |
| Output (Watts) | 1000 |
| Nominal Output Voltage(s) Supported | 120V |
| Output Receptacles | (4) 5-15R |
| Continuous Output Capacity (Watts) | 1000 |
| Peak Output Capacity (Watts) | 2000 |
| Output Voltage Regulation | Maintains PWM sine wave output voltage of 115 VAC (+/- 10% VAC) |
| Output Frequency Regulation | 60 Hz (+/- 5% Hz) |
| Overload Protection | Automatic overload protection shuts down inverter system in the event of overloads. Inverter and electrical system are further protected via four internal 40A automotive fuses |
Battery
| DC System Voltage (VDC) | 12 |
|---|
User Interface, Alerts & Controls
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on battery and connected load conditions |
|---|---|
| Switches | 3 position rocker switch enables on/off power control, plus "remote" setting which enables inverter to be remotely powered on or off when used in conjunction with APSRM4 Remote Control Module (sold separately) |
Physical
| Cooling Method | Fan |
|---|---|
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information) |
| Material of Construction | Aluminum, Steel |
Environmental
| Relative Humidity | 0-95% non-condensing |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
