Description
Description

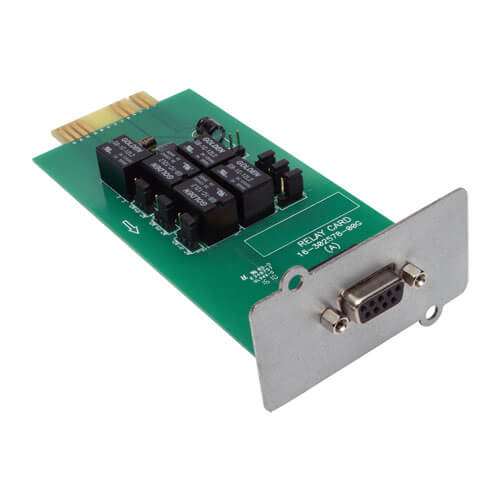

Provides contact closures for remote monitoring of Tripp Lite SVTX, SVX, S3MX and SV Series UPS systems. Recommended for IBM server, PC and workstation equipment, auto-controlled industrial equipment and communication applications.
Features
- Provides Contact Closures for Remote UPS System Monitoring
- Recommended for IBM server, PC and workstation equipment and auto-controlled industrial equipment and communications applications
- 6 output relays configurable to Normally Close or Normally Open
- Input signal performs remote UPS shutdown or battery test
- Relay contacts report UPS alarm, utility failure, UPS on-line mode, low battery, bypass mode and UPS failure
- Compatible with Tripp Lite SmartOnline SVTX 400V non-modular, SVX 400V modular, S3MX 400V non-modular and SV 208V modular UPS systems
- 6 ft. DB9 cable included
Specifications
Specifications
System Requirements
- Tripp Lite SmartOnline SVTX 400V non-modular, SVX 400V modular, S3MX 400V non-modular or SV 208V modular UPS system
Highlights
- Allows UPS to provide contact closure output communications
- 6 output relays configurable to Normally Close or Normally Open
- Input signal performs remote UPS shutdown or battery test
- For Tripp Lite SVTX, SVX, S3MX and SV 3-phase UPS systems only
Overview
| UPC Code | 37332199775.0 |
|---|
Output
| Output Connector Type | DB9 port |
|---|
Physical
| Shipping Dimensions (hwd / in.) | 1.89 x 6.54 x 4.89 |
|---|---|
| Shipping Weight (lbs.) | 0.44 |
| Unit Dimensions (hwd / in.) | 5.08 x 1.3 x 2.64 |
| Unit Weight (lbs.) | 0.18 |
Communications
| Communications Interface | Contact closure |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
