Tripp-Lite SMART1000LCDNC | 1000VA 750W 120V Line-Interactive Cloud...
Description
Description

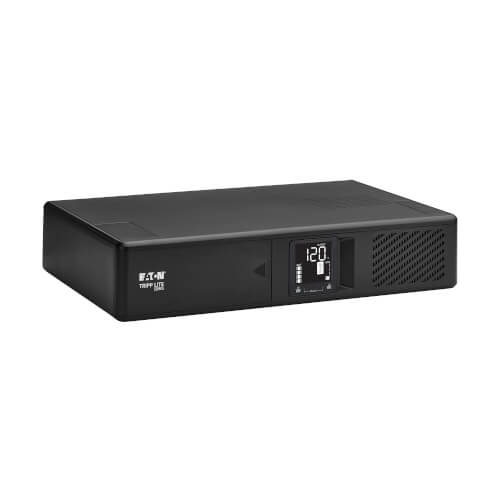

The SMART1000LCDNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its flexible form factor is suitable for desktop or floor placement, under desks or workstations, mounted on a wall or installed in 2U of space in a 2-post or 4-post rack. It’s recommended for home, office and retail use, as well as network closets in both local and rem ote locations. Eaton’s cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to dwnload the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of s ite visits, saving you time and money. The unit’s NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
Tripp-Lite - SMART1000LCDNC - Features
- Cloud-based dashboard allows 24/7 remote monitoring via browser or mobile app
- Cloud-connected UPS sets up in minutes to start protecting your devices
- Create account with two-factor authentication for an additional layer of security
- NFC technology allos easy configuration of network settings from your mobile device
- Switchable load banks let you shut down or reboot devices using the mobile app
- Restarts automatically when AC power is restored, even when battery level is low or absent
Specifications
Specifications
Tripp-Lite - SMART1000LCDNC - Specifications
| Type | Uninterruptible Power Supply |
|---|---|
| UNSPSC Code | 39121011 |
| UPC Code | 37332280114 |
| Input Phase | Single-Phase |
| Rated input current (Maximum Load) | 8.4A |
| Nominal Input Voltage(s) Supported | 120V AC |
| Input Circuit Breakers | 10A |
| Maximum Input Amps | 8 |
| Input Frequency | 50/60Hz Auto-sensing |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length (ft.) | 5 |
| Output Capacity (VA) | 1000 |
| Output Capacity (kVA) | 1 |
| Output Capacity (kW) | 0.75 |
| Nominal Voltage Details | 120v nominal output in battery mode |
| Output AC Waveform (AC Mode) | Sine Wave |
| Output (Watts) | 750 |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage (VDC) | 24 |
| Battery Access | Battery Access Door |
| Rack Height | 2U |
| Unit Dimensions (hwd / in.) | 3.430 x 17.200 x 11.000 |
| Unit Weight (lbs.) | 23.6 |
| Unit Weight (kg) | 10.7 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Relative Humidity | 0-90% non-condensing |
