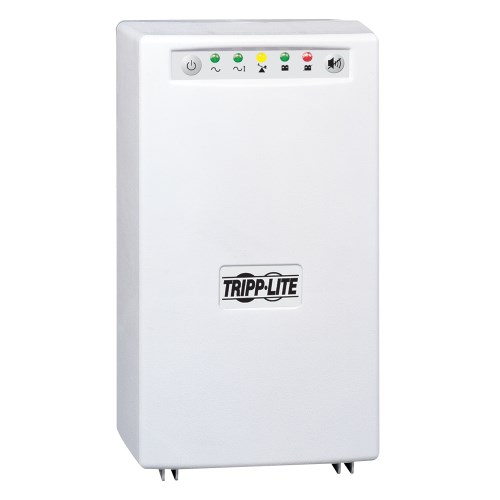

Tripp-Lite SMART1200XLHG | SmartPro 120V 1kVA 750W Medical-Grade Line-Interactive Tower UPS, 4 Outlets, Full Isolation, Expandable Runtime
Regular price
$1,634.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SMART1200XLHG | SmartPro 120V 1kVA 750W Medical-Grade Li...
Regular price
$1,634.74
Unit price
Description
Description
Provides UL 60601-1 compliant, medical-grade 1kVA/750W power backup, ideal for use in patient-care vicinities. The built-in isolation transformer offers full isolation while maintaining AC surge protection in all modes.
Features
- Ideal UPS Backup in Healthcare Facilities
- Complies with UL 60601-1 standards for use in patient-care facilities
- Isolation transformer with Faraday shield offers full isolation and removes common mode noise
- 6 ft. power cord with 120V NEMA 5-15P-HG plug
- Floating AC output prevents noise coupling and meets agency requirements for isolation
- Reliable Battery Backup and Surge Protection
- Supports half load up to 28 min. and full load up to 10 min.
- 4 NEMA 5-15R-HG outlets with 940-joule surge protection
- Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
- Resists electrostatic discharge
- LEDs and Audible Alarms
- Front LEDs indicate power, mode, load and battery status
- Alarms alert you to power failure, overload and low battery
- Mute/quiet mode ideal for use in quiet patient-care vicinities
- Saves Files When You’re Away
- Included PowerAlert software enables safe, unattended system shutdown and file saving during power failures
- Connects to computer via DB9 or USB port with included cables
Specifications
Specifications
Overview
| UPC Code | 37332116406 |
|---|---|
| UPS Type | Line-Interactive |
Input
| Rated input current (Maximum Load) | 9.2A |
|---|---|
| Nominal Input Voltage(s) Supported | 120V AC |
| UPS Input Connection Type | 5-15P-HG |
| Input Circuit Breakers | 15A |
| UPS Input Cord Length (ft.) | 6 |
| Recommended Electrical Service | 15A 120V |
Output
| Output Volt Amp Capacity (VA) | 1000 |
|---|---|
| Output kVA Capacity (kVA) | 1 |
| Output Watt Capacity (Watts) | 750 |
| Power Factor | 0.8 |
| Frequency Compatibility | 60 Hz |
| Output Voltage Regulation (Line Mode) | -18%, +8% |
| Output Voltage Regulation (Battery Mode) | 115V (+/- 5%) |
| Output Receptacle Details | Hospital grade output receptacles |
| Output AC Waveform (AC Mode) | Sine wave |
| Output AC Waveform (Battery Mode) | PWM sine wave |
Battery
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|---|
| Full Load Runtime (min.) | 10 min. (750w) |
| Half Load Runtime (min.) | 28 min. (375w) |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| Expandable Runtime | Yes |
Voltage Regulation
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143 |
|---|---|
| Overvoltage Correction | Input voltages between 126 and 143 are reduced by 9% |
User Interface, Alerts & Controls
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
|---|---|
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Audible Alarm | Factory-muted audible alarm indicates power-failure, overload and low-battery conditions |
Surge / Noise Suppression
| UPS AC Suppression Joule Rating | 940 |
|---|---|
| UPS AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
| AC Suppression Joule Rating | 940 |
Isolation
| Output Isolation Transformer | Hospital grade load isolation transformer |
|---|---|
| Leakage Current | Less than 100 microamps |
Physical
| Cooling Method | Fan |
|---|---|
| Installation Form Factors Supported with Included Accessories | Tower |
| Installation Form Factors Supported with Optional Accessories | Wallmount ( UPSWM - tower mounting kit) |
Environmental
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
|---|---|
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%; non-condensing |
| AC Mode BTU / Hr. (Full Load) | 162.8 |
| Battery Mode BTU / Hr. (Full Load) | 315.2 |
| AC Mode Efficiency Rating (100% Load) | 0.94 |
Communications
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
|---|---|
| PowerAlert Software | For local monitoring via the UPS’s built-in communication ports ; download PowerAlert Local software at https://www.tripplite.com/poweralert |
| Communications Cable | USB and DB9 serial cabling included |
| Communications Interface | USB; DB9 Serial |
Line / Battery Transfer
| Transfer Time | 2-4 milliseconds |
|---|---|
| Low Voltage Transfer to Battery Power (Setpoint) | 81 |
| High Voltage Transfer to Battery Power (Setpoint) | 143 |
