Brand: Tripp-Lite
|
SKU:
931958

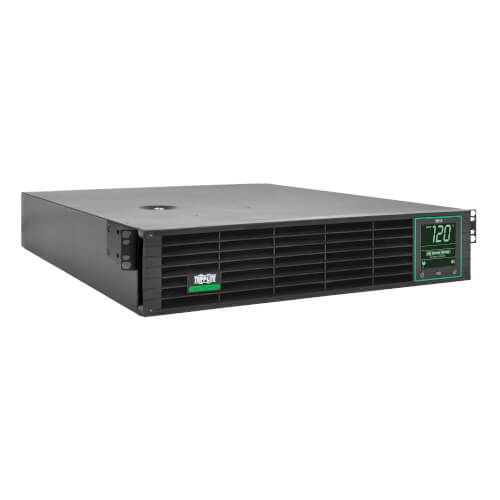

Tripp-Lite SMART2200RM2UL | SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, Lithium Iron Phosphate (LiFePO4) Batteries, 2U, LCD, USB, DB9
Regular price
$3,724.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SMART2200RM2UL | SmartPro 120V 2.2kVA 1.92kW Line-Intera...
Regular price
$3,724.87
Unit price
Description
Description
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Special LiFePO4 battery provides long service life and more cycles.
Features
- Protects Mission-Critical Rack-Mounted Equipment: Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
- Audible alarm signals loss of utility power, overload and low battery
- 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
- 570-joule surge suppression rating
- 0.9 power factor rating
- 97% line-mode efficiency rating saves money in energy costs
- Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery: More than 2x the service life
- Up to 3x more charge/discharge cycles
- Recharges to 100% capacity in less than 2 hr.
- Weighs 60% less, reducing overall UPS weight
- Supports half load up to 11.7 min. and full load up to 5.1 min.
- 2 Load Banks with Switchable Outlets: Can control 2 outlets remotely to reboot equipment or shed nonessential loads
- Automatic Voltage Regulation (AVR): Maintains 120V nominal output over input range of 83V-145V without using battery power
- EMI/RFI Line Noise Filtering: Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
- Interactive LCD Screen: Front-panel LCD with detailed UPS and site power status and operating data
- Rotates for easy viewing in rack-mount or tower configurations
- Optional Network Management Cards: Compatible with Tripp Lite UPS management cards TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
- Communications Ports: USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at www.tripplite.com/poweralert)
- EPO port supports emergency shutdown in large facilities
- Versatile Installation Options: Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- Mounts in upright tower position with optional 2-9USTAND accessory
- Backed by Tripp Lite's Ultimate Lifetime Insurance: $250,000 Ultimate Lifetime Insurance covers any connected components (U.S., Canada and Puerto Rico only)
Specifications
Specifications
Overview
| UPC Code | 37332192646 |
|---|---|
| UPS Type | Line-Interactive |
Input
| Rated input current (Maximum Load) | 16A (120V) |
|---|---|
| Nominal Input Voltage(s) Supported | 120V AC |
| UPS Input Connection Type | 5-20P |
| UPS Input Cord Length (ft.) | 10 |
| Recommended Electrical Service | 20A 120V |
| Input Phase | Single-Phase |
Output
| Output Volt Amp Capacity (VA) | 2200 |
|---|---|
| Output kVA Capacity (kVA) | 2.2 |
| Output Watt Capacity (Watts) | 1920 |
| Output kW Capacity (kW) | 1.92 |
| Power Factor | .87 |
| Nominal Voltage Details | 120v nominal output in battery mode |
| Frequency Compatibility | 60 Hz |
| Output Voltage Regulation (Line Mode) | -14%, +6% |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Load Management Receptacles | Two switchable single-outlet load banks |
Battery
| Battery Type | Lithium Ion |
|---|---|
| Full Load Runtime (min.) | 5.1 min. (1920w) |
| Half Load Runtime (min.) | 11.7 min. (960w) |
| Expandable Runtime | No |
| DC System Voltage (VDC) | 48 |
Voltage Regulation
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145 |
|---|---|
| Overvoltage Correction | Input voltages between 127 and 145 are reduced by 12% |
User Interface, Alerts & Controls
| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) |
|---|---|
| Switches | 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
Surge / Noise Suppression
| UPS AC Suppression Joule Rating | 570 |
|---|---|
| UPS AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
Physical
| Cooling Method | Fan |
|---|---|
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| Minimum Required Rack Depth (inches) | 24.3 |
| Optional Mounting Accessory Notes | Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only; without rear support |
| Primary Form Factor | Rackmount |
| Primary UPS Depth (mm) | 489 |
| Primary UPS Height (mm) | 87 |
| Primary UPS Width (mm) | 440 |
| Rack Height | 2U |
| Shipping Dimensions (hwd / in.) | 10.24 x 25.59 x 27.76 |
| Shipping Weight (lbs.) | 61.1 |
| UPS Housing Material | Steel |
| UPS Power Module Dimensions (hwd; in.) | 3.43 x 17.32 x 19.27 |
| UPS Power Module Weight (kg) | 18.95 |
| UPS Power Module Weight (lbs.) | 41.78 |
Environmental
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
|---|---|
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
Communications
| Network Management Cards | SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD |
|---|---|
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Communications Cable | USB; DB9 and EPO cabling included |
| WatchDog Compatibility | Supports Watchdog application; OS and hard-reboot restart options for remote applications |
| Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
| Communications Interface | DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled) |
Documents and Downloads
Documents and Downloads
- SMART2200RM2UL runtime chart
- Owner's Manual for SMART1500RM2UL & SMART2200RM2UL (Multi-language)
- Single-Phase UPS Systems Visio Stencil
- Single-Phase UPS Systems Visio Stencil Preview
- SmartPro UPS Systems with Lithium-Ion Battery Product Announcement Flyer (English)
- SmartPro UPS System with Lithium-Ion Battery Product Announcement Flyer (English)
- Lithium vs. Lead-Acid Batteries
- New Auto-Probe Feature on UPS Systems and PDUs
- Download images for this product
