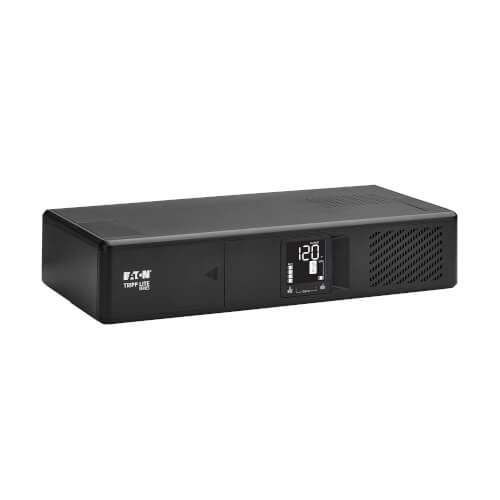

Tripp-Lite SMART750LCDNC | 750VA 475W 120V Line-Interactive Cloud-Connected UPS, 2U Rack/Tower
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SMART750LCDNC | 750VA 475W 120V Line-Interactive Cloud-C...
Description
Description
The SMART750LCDNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its flexible form factor is suitable for desktop or floor placement, under desks or workstations, mounted on a wall or installed in 2U of space in a 2-post or 4-post rack. It’s recommended for home, office and retail use, as well as network closets in both local and remot e locations. Eaton’s cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to dowload the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of sit e visits, saving you time and money. The unit’s NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
Tripp-Lite - SMART750LCDNC - Features
- Cloud-based dashboard allows 24/7 remote monitoring via browser or mobile app
- Cloud-connected UPS sets up in minutes to start protecting your devices
- Create account with two-factor authentication for an additional layer of security
- NFC technology allos easy configuration of network settings from your mobile device
- Switchable load banks let you shut down or reboot devices using the mobile app
- Restarts automatically when AC power is restored, even when battery level is low or absent
Specifications
Specifications
Tripp-Lite - SMART750LCDNC - Specifications
| Type | Uninterruptible Power Supply |
|---|---|
| UNSPSC Code | 39121011 |
| UPC Code | 37332280107 |
| Input Phase | Single-Phase |
| Rated input current (Maximum Load) | 6.3A |
| Nominal Input Voltage(s) Supported | 120V AC |
| Input Circuit Breakers | 7A |
| Maximum Input Amps | 6 |
| Input Frequency | 50/60Hz Auto-sensing |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length (ft.) | 5 |
| Output Capacity (VA) | 750 |
| Output Capacity (kVA) | 0.75 |
| Output Capacity (kW) | 475 |
| Nominal Voltage Details | 120v nominal output in battery mode |
| Output AC Waveform (AC Mode) | Sine Wave |
| Output (Watts) | 475 |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage (VDC) | 12 |
| Battery Access | Battery Access Door |
| Rack Height | 2U |
| Unit Dimensions (hwd / in.) | 3.420 x 17.240 x 8.270 |
| Unit Weight (lbs.) | 16.8 |
| Unit Weight (kg) | 7.62 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Relative Humidity | 0-90% non-condensing |
