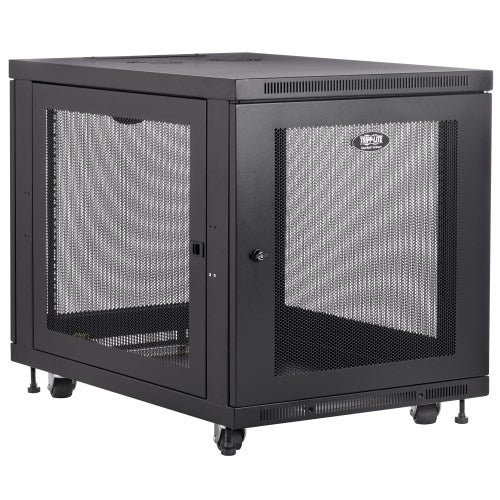

Tripp-Lite SR12UB | SmartRack 12U Mid-Depth Small Rack Enclosure
Regular price
$839.62
Unit price
Brand: Tripp-Lite
|
SKU:
452669-METRO
Regular price
$839.62
Unit price
Description
Description
Ideal for data centers and IT environments that need a secure, mid-depth and heavy-duty rack enclosure cabinet capable of
supporting up to 1,000 lbs. of equipment in a full 12U of rack space.
Features
- Simple Installation: Compatible with all standard 19-inch rack equipment and is designed to simplify equipment installation. It features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches.The rails feature square mounting holes and are capable of supporting up to 1000 lbs (453.6 kgs) of equipment with included installation hardware. The top and bottom panels are also provided with ports for cable routing. Each rack space within the enclosure is numbered for easy reference.
- Secure Equipment Access: Designed to provide a safe, secure installation solution for up to 1000 lbs (453.6 kgs) of mission-critical rackmount equipment. It features a locking, reversible front/rear doors and locking, removable side panels. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement.
- Convection Cooling: The top and bottom panels are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. The panels also support installation of standard user-supplied case fans (Tripp Lite SRFANWM).
- Vented Top and Bottom Panels with Cable Cutouts: The top and bottom panels are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans.
- Casters for Mobility: Comes with an accessory caster kit consisting of 4 casters and all required installation hardware. With the casters installed, the SR12UB can easily be maneuvered into the desired location, and then secured in place by adjusting the unit's levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.
Special Features
| Grounding Lug | Front and Back door frames |
|---|
Specifications
Specifications
Highlights
- Premium SmartRack mid-depth enclosure cabinet
- 12U of rack space; 1000 lbs (453.6 kgs) load capacity
- Depth of 33" allow for standard server installation
- Locking, reversible front/rear doors and locking, removable side panels
- Casters and leveling feet
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
Package Includes
- SmartRack 12U Mid-Depth Rack Enclosure Cabinet
- (36) M6 screws
- (36) M6 cage nuts
- (36) M6 washers
- SRACASTER kit (includes 4 casters)
- (2) keys
- Owner's Manual
Overview
| UPC Code | 37332157911 |
|---|---|
| Device Compatibility | Patch Panel; Network Switch; UPS; Server |
| Rack Type | Enclosure |
Physical
| Color | Black |
|---|---|
| Factory Preset Rack Depth (in.) | 28.31 |
| Maximum Device Depth (in.) | 32.5 |
| Minimum Device Depth (in.) | 3 |
| Cable Access Hole Measurement (inches) | 9.812 x 2.35 (l x w) |
| Rack Height | 12U |
Standards & Compliance
| Certifications | RoHS; UL/CSA 60950-1; IP20 Protection Rating |
|---|---|
| Approvals | EIA/ECA-310-E |
Warranty
| Product Warranty Period (Worldwide) | 5-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for SRCASTER Rack
- Owner's Manual for SR12UB 12U Rack Cabinet
- Isometric Visio Stencils for Data Center Floor Planning
- Isometric Visio Stencils for Data Center Floor Planning Stencil Preview
- SR12UB Submittal Drawing
- SR12UB STEP File
- SmartRack Enclosures Visio Stencil
- SmartRack Enclosures Visio Stencil Preview
- Integrated Solutions Brochure (English)
- Storm Season is Here Again Flyer (English)
- EC Declaration
- Custom Rack Solutions
- Rack Buying Guide
- Rack Enclosure Ratings
- Rack Basics
