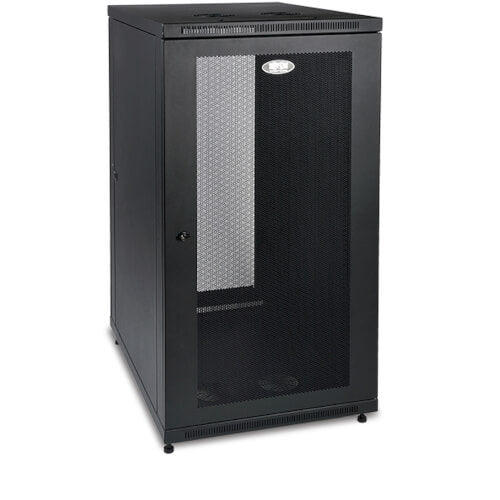

Tripp-Lite SR24UB | SmartRack 24U Mid-Depth Half-Height Rack Enclosure
Regular price
$1,700.18
Unit price
Brand: Tripp-Lite
|
SKU:
641265
Regular price
$1,700.18
Unit price
Description
Description
Tripp-Lite SR24UB | SmartRack 24U Mid-Depth Half-Height Rack Enclosure
Features
- 24U extra deep enclosure
- Adjustable mounting depths from 3" to 32.5" inches
- Locking, reversible front and rear doors
- Locking, removable side panels
- Top and bottom panel cable access openings
- Fully assembled for quick installation
- Casters and leveling feet
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
Special Features
| Grounding Lug | Front and Back door frames |
|---|---|
| Built-in Cable Management | Yes |
Specifications
Specifications
Highlights
- 24U rack cabinet with adjustable front and rear vertical rackmount rails
- Extended depth of 33" allow for standard server installation
- Locking, reversible front/rear doors and locking, removable side panels
- Fully assembled for quick installation
- Casters and leveling feet included
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
Package Includes
- SmartRack 24U Mid-Depth Rack Enclosure Cabinet
- (50) M6 screws
- (50) M6 cage nuts
- (50) M6 washers
- (4) Casters
- (4) Levelers
- (2) keys
- Owner's Manual
Overview
| UPC Code | 37332185228 |
|---|---|
| Device Compatibility | Patch Panel; Network Switch; UPS; Server |
| Rack Type | Enclosure |
Physical
| Color | Black |
|---|---|
| Factory Preset Rack Depth (in.) | 28.31 |
| Maximum Device Depth (in.) | 32.5 |
| Minimum Device Depth (in.) | 3 |
| Cable Access Hole Measurement (inches) | 9.812 x 2.35 (l x w) |
| Rack Height | 24U |
Standards & Compliance
| Certifications | RoHS; IP20 Protection Rating |
|---|---|
| Approvals | EIA/ECA-310-E |
Warranty
| Product Warranty Period (Worldwide) | 5-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for SRCASTER Rack
- Owner's Manual for 24U SmartRack Enclosure (Multi-language)
- Isometric Visio Stencils for Data Center Floor Planning
- Isometric Visio Stencils for Data Center Floor Planning Stencil Preview
- SR24UB Submittal Drawing
- SR24UB STEP File
- SmartRack Enclosures Visio Stencil
- SmartRack Enclosures Visio Stencil Preview
- SR24UB BIM Object Download
- Integrated Solutions Brochure (English)
- Storm Season is Here Again Flyer (English)
- EC Declaration
- Custom Rack Solutions
- Rack Buying Guide
- Rack Enclosure Ratings
- Rack Basics
