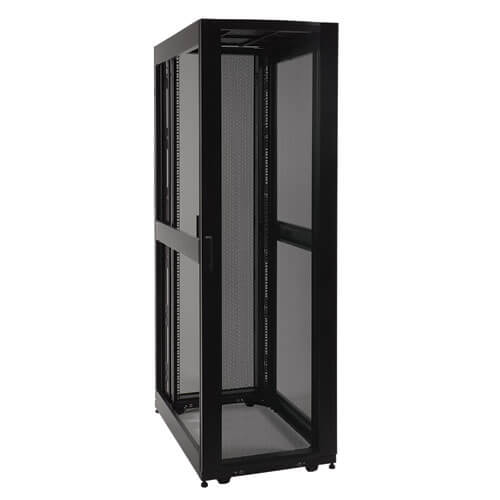

Tripp-Lite SR45UBEXP | 45U SmartRack Standard-Depth Rack Enclosure Cabinet - side panels not included

Features

• Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)
• Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
• Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
• Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws
• Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.
• Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.
• Maximum usable internal depth of 37 inches/94 cm (front to rear rail).
• Weight ratings of 3000 lbs (1360.8 kgs) stationary and 2250 lbs (1020.6 kgs) rolling.
• Front door is locking, reversible and removable.
• Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall.
• Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.
• Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.
• Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.
• Open bottom for cable access.
• Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.
• Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack.
• Compatibility with airflow optimization accessories as well as cable management accessories.
