Description
Description

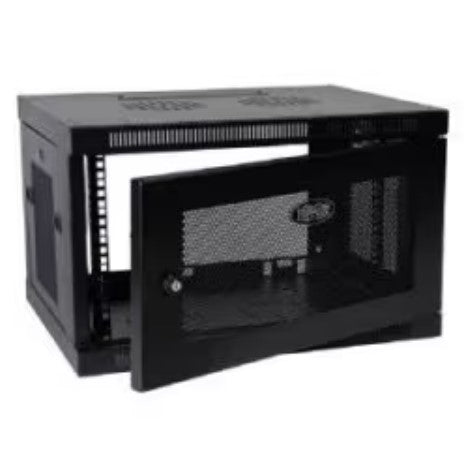

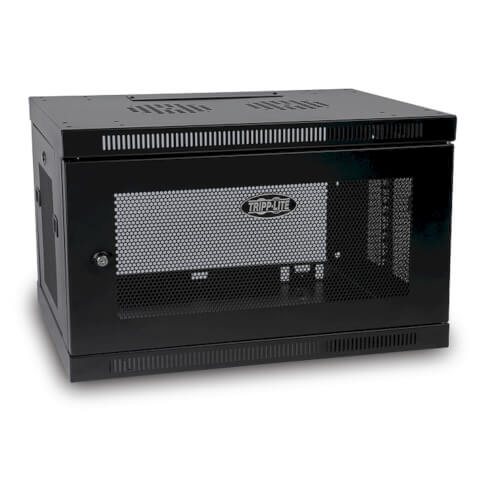

The SRW6U 6U Wall Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 6U of standard 19" rackmount equipment. Supports up to 140 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.
Tripp Lite - SRW6U - Features
- Saves Valuable Workspace
- Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
- Houses EIA-standard 19 in. rack equipment in 6U of space
- Maximum load capacity of 200 lb.
- Keeps Important Equipment Secure
- Side panels and front door lock securely to help prevent damage, tampering or theft
- Vented panels allow generous airflow that keeps equipment cool
- Rotate cabinet 180efore mounting to open reversible front door left or right
- Convenient ports with removable covers allow cable routing through top and bottom
- Easy Enclosure and Equipment Installation
- Ships fully assembled for quick installation
- Mounts to wall or rollon floor with Tripp Lite’s optional SRCASTER caster kit
- Wall-mounting holes spaced 16 in. apart for standard wall stud placement
- Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 16.5 in. deep, such as network switches and patch panels
- Rails support square-hole or 12-24 threaded-hole mounting
- Rack spaces numbered for easy reference
- Meets Payment Card Industry Standards
- Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data curity Standard) compliance
Specifications
Specifications
Tripp Lite - SRW6U - Specifications
| Airflow | Front-To-Rear |
|---|---|
| Color | Black |
| Overall Depth | Greater Than 1’ To 2’ |
| Material | Steel |
| Model | Network |
| Mounting Width | 19" |
| Multi-Compartment | No |
| Nema Rating | No Nema Rating |
| Overall Height | Greater Than 1’ To 2’ |
| Rack Units | 6U |
| Overall Width | Greater Than 1’ To 2’ |
| Rail Style | Square-Punched And Tapped |
| Seismic Rating | No |
| Type | Wall-Mount |
| UNSPSC Code | 24102001 |
