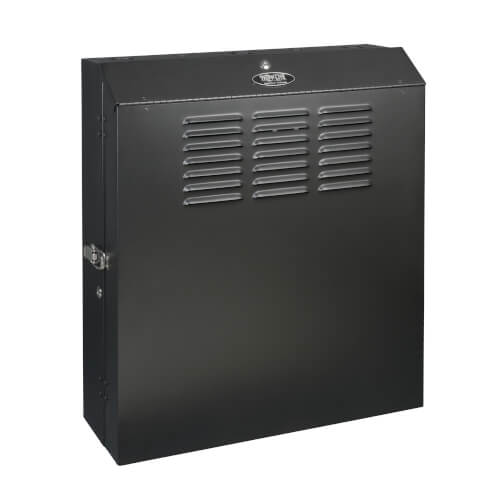

Tripp-Lite SRWF5U | SmartRack 5U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

Features

• Saves Valuable Workspace
• Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
• Houses EIA-standard 19 in. rack equipment in 5U of space
• Low-profile vertical-mount cabinet extends less than 10 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels
• Also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep
• Maximum load capacity of 150 lbs (68 kgs)
• Keeps Important Equipment Secure
• Top panel and reversible front door lock securely to help prevent damage, tampering or theft
• Vented cabinet keeps equipment cool
• Convenient ports with removable covers allow cable routing through top and bottom
• Easy Enclosure and Equipment Installation
• Ships fully assembled for quick installation
• Wall-mounting holes spaced 16 in. apart for standard wall stud placement
• Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
• Threaded mounting holes support M6 or 12-24 mounting
• Rack spaces marked for easy reference
• Meets Payment Card Industry Standards
• Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
