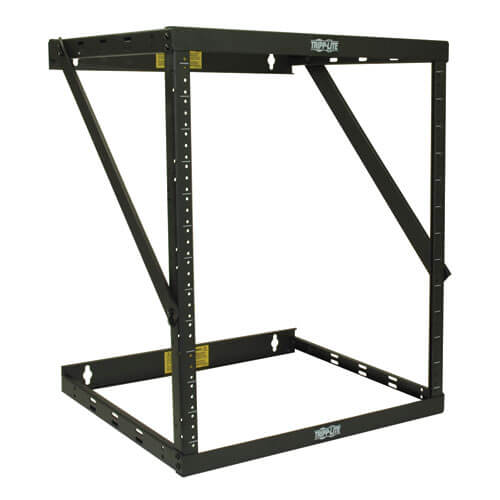

Tripp-Lite SRWO12UHD | SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack
Regular price
$281.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SRWO12UHD | SmartRack 12U Heavy-Duty Flat-Pack Low-Profi...
Regular price
$281.24
Unit price
Description
Description
Open frame rack stores 12U of 19-inch rack equipment up to 18 inches deep in network closets and other locations with limited floor space where a locked enclosure is not required. Allows easy access to equipment and cabling.
Features
- Saves Valuable Workspace
- Perfect for network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required
- Stores and organizes EIA-standard 19 in. rack equipment compatible with 2-post mounting in 12U of space
- Maximum load capacity of 200 lbs (90.7 kgs)
- 2-Post Open Frame Design
- Allows easy access for installing, configuring and servicing equipment and cabling
- Easy Assembly and Installation
- Wall-mounting holes spaced 16 in. apart for standard wall stud placement
- Vertical mounting rails accommodate equipment up to 18 in. deep, such as network switches and patch panels
- Rails support threaded-hole equipment mounting
- Rack spaces numbered for easy reference
- Includes assembly and equipment-mounting hardware
Specifications
Specifications
Highlights
- Maximum load capacity of 200 lbs (90.7 kgs)
- Allows easy access to equipment and cabling
- Stores 12U of 19 in. rack equipment up to 18 in. deep
- Simple to assemble and mount
- Assembly and equipment-mounting hardware included
Package Includes
- (24) 12-24 equipment mounting screws
- (8) M5 button-head cap screws
- (8) M6 x 12 Phillips-head screws
- (2) Support straps
- (2) Vertical mounting rails
- (2) Top/bottom panel frames
- 3 mm hex key
- Owner’s manual
Overview
| UPC Code | 37332182654 |
|---|---|
| Device Compatibility | Patch Panel; Network Switch |
| Rack Type | Open-Frame |
Physical
| Color | Black |
|---|---|
| Maximum Device Depth (in.) | 18 |
| Rack Height | 12U |
| Shipping Dimensions (hwd / in.) | 4.10 x 22.80 x 21.30 |
| Shipping Weight (lbs.) | 15.1 |
| Unit Dimensions (hwd / in.) | 24.8 x 20.1 x 18.24 |
Standards & Compliance
| Approvals | EIA-310-D, IEC 60297-3-100, RoHS |
|---|
Warranty
| Product Warranty Period (Worldwide) | 5-year limited warranty |
|---|
