Brand: Tripp-Lite
|
SKU:
452679

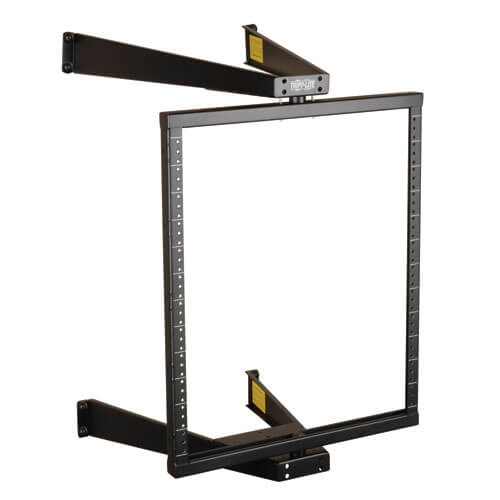

Tripp-Lite SRWO12US | SmartRack 12U Flat-Pack Low-Profile Switch-Depth Wall-Mount Pivoting 2-Post Open Frame Rack
Regular price
$376.36
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SRWO12US | SmartRack 12U Flat-Pack Low-Profile Switch-De...
Regular price
$376.36
Unit price
Brand: Tripp-Lite
|
SKU:
452679
Regular price
$376.36
Unit price
Description
Description
Open frame rack stores 12U of 19-inch rack equipment up to 18 inches deep in locations with limited floor space where a locked enclosure is not required.. Pivots to allow easy rear access to equipment and cabling.
Features
- Saves Valuable Workspace
- Perfect for network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required
- Maximum load capacity of 150 lbs (68 kgs)
- 2-Post Open-Frame Design
- Pivoting frame allows easy access for installing, configuring and servicing equipment and cabling from any direction
- Stores and organizes EIA-standard 19 in. rack equipment compatible with 2-post mounting in 12U of space
- Easy Assembly and Installation
- Wall-mounting holes spaced 16 in. apart for standard wall stud placement
- Vertical mounting rails accommodate equipment up to 18 in. deep, such as network switches and patch panels
- Locking pins prevent the frame from moving during equipment installation
- Rails support threaded-hole equipment mounting
- Rack spaces numbered for easy reference
- Includes assembly and equipment-mounting hardware
Specifications
Specifications
Highlights
- Maximum load capacity of 150 lbs (68 kgs)
- Pivots to allow easy rear access to equipment and cabling
- Stores 12U of 19 in. rack equipment up to 18 in. deep
- Simple to assemble and mount
- Assembly and equipment-mounting hardware included
Package Includes
- Mounting template
- (2) Wall-mount A frames
- Equipment mounting frame
- (2) Pivot bearings
- (2) T bolts
- (4) Washers
- (2) M10 lock nuts
- (2) Locking pins
- (24) 12-24 equipment mounting screws
- Owner’s manual
Overview
| UPC Code | 37332156761 |
|---|---|
| Device Compatibility | Patch Panel; Network Switch |
| Rack Type | Open-Frame |
Physical
| Color | Black |
|---|---|
| Maximum Device Depth (in.) | 18 |
| Rack Height | 12U |
| Shipping Dimensions (hwd / in.) | 4.10 x 24.40 x 20.10 |
| Shipping Weight (lbs.) | 16 |
| Unit Dimensions (hwd / in.) | 31.04 x 19.76 x 20.35 |
Standards & Compliance
| Approvals | EIA-310-D, IEC 60297-3-100, RoHS |
|---|
Warranty
| Product Warranty Period (Worldwide) | 5-year limited warranty |
|---|
