Brand: Tripp-Lite | SKU: 452677

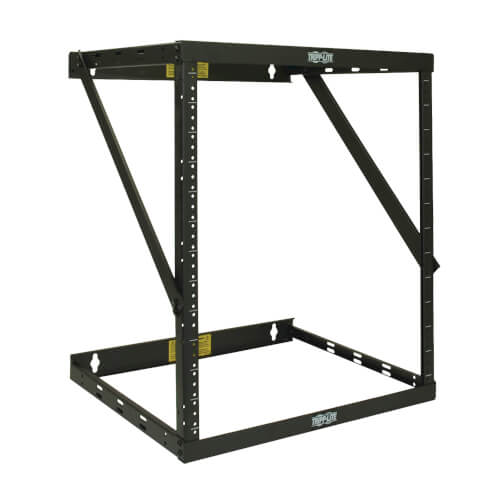

Tripp-Lite SRWO8U22 | SmartRack 8U/12U/22U Expandable Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack

$289.84

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Expandable open-frame rack stores 8U, 12U or 22U of 19-inch rack equipment up to 18 inches deep in locations with limited floor space where a locked enclosure is not required. Allows easy access to equipment and cabling.

Features

Saves Valuable Workspace
Perfect for network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required
Stores and organizes EIA-standard 19 in. rack equipment compatible with 2-post mounting
Maximum load capacity of 150 lbs (68 kgs)
Expandable 2-Post Open Frame Design
Assembles in 8U, 12U or 22U configuration to meet current needs
Expands to add equipment later without having to buy a bigger rack
Allows easy access for installing, configuring and servicing equipment and cabling
Easy Assembly and Installation
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Vertical mounting rails accommodate equipment up to 18 in. deep, such as network switches and patch panels
Rails support threaded-hole equipment mounting
Rack spaces numbered for easy reference
Includes assembly and equipment-mounting hardware

Specifications

Highlights

Maximum load capacity of 150 lbs (68 kgs)
Configures to 8U, 12U or 22U of rack space
Allows easy access to equipment and cabling
Stores 19 in. rack equipment up to 18 in. deep
Simple to assemble and mount

Package Includes

(24) 12-24 equipment mounting screws
(8) M6 x 12 Phillips-head screws
(16) M5 x 10 Phillips-head screws
(2) Short vertical mounting rails
(2) Long vertical mounting rails
(2) Mounting rail tie plates
(2) Top/bottom panel frames
(2) Support straps
(8) Zip ties
3 mm hex key
Owner’s manual

Overview

UPC Code	37332156778
Device Compatibility	Patch Panel; Network Switch
Rack Type	Open-Frame

Physical

Color	Black
Maximum Device Depth (in.)	18.24
Maximum Weight Capacity (lbs.)	150
Rack Height	22U
Shipping Dimensions (hwd / in.)	3.70 x 22.80 x 21.80
Shipping Weight (lbs.)	19

Standards & Compliance

Approvals	EIA-310-D, IEC 60297-3-100, RoHS

Warranty

Product Warranty Period (Worldwide)	5-year limited warranty
