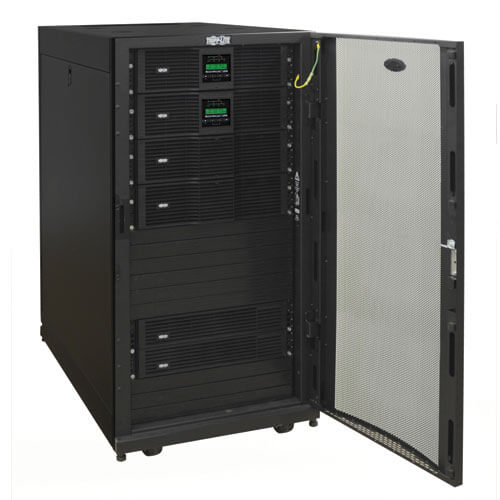

Tripp-Lite SU20KRTHWTFASSM | SmartOnline 240 & 120V 20kVA 18kW Double-Conversion UPS in 25U enclosure, Pre-installed Network Card, USB, DB9, Bypass, Hardwire

Features

• Tripp Lite SU20KRTHWTFASSM 20kVA, 20,000VA / 18,000 watt on-line, double-conversion UPS system in a 16U total rack/tower configuration (max output de-rates to 18kVA / 16kW when operated at 208V nominal input voltage)
• Pre-built into a 25U SmartRack enclosure with 6U of open rack space able to accommodate two optional additional BP240V10RT3U external battery packs
• Offers enhanced fault-tolerance and reliability with N+1 configuration support and hot-swappable whole UPS replacement options
• Unique configuration ties input, output and data connections of two standard 10kVA UPS systems via detachable parallel PDU to offer 20kVA non-redundant operation and automatic N+1 redundancy at load levels of 50% and lower
• Included Parallel PDU with manual bypass switching enables hot-swappable replacement of either power module at any supported load level, with no interruption to connected equipment
• Hardwire input and output connections
• Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
• Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
• Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
• Maintains full-time sine wave output within 2% of 240/120V nominal at 60Hz during brownouts as low 100V and overvoltages as high as 300V
• Expandable runtime is supported with optional BP240V10RT3U; BP240V787C-1PH external battery packs
• Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
• Intelligent battery management system with temperature-compensated charging extends battery life
• Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
• Rack / tower configuration installs in 16 total rack spaces (16U)
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• Pre-installed Network Management Card (one per 10kVA power module) offers communications and control via secure remote web and network interfaces
• Supports Emergency Power Off (EPO) via built-in interface
• Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters
• LED / LCD display panel rotates for viewing in rackmount or tower configurations
• Network-grade AC surge and noise suppression
• Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration overload conditions
• External battery packs are field replaceable and hot swappable
• $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
