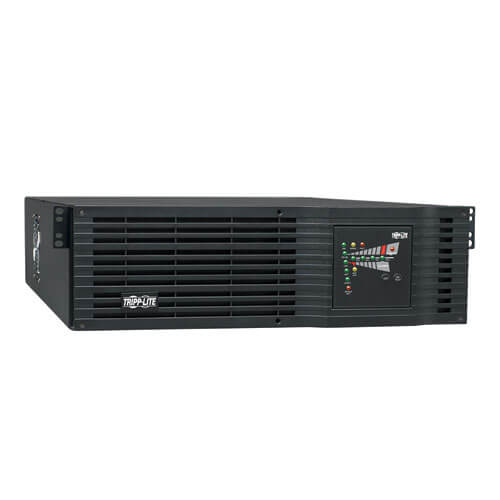

Tripp-Lite SU3000RTXR3U | SmartOnline 120V 3kVA 2.4kW Double-Conversion UPS, 3U, Extended Run, Oversize Batteries, Network Card Slot, USB, DB9

Features

• SmartOnline high power density UPS system is ideal for critical voice, data, medical and industrial network applications
• Special "XR" version offers larger internal batteries for longer runtimes than standard "XL" model
• True online, double-conversion UPS provides perfectly regulated sine wave output within 2% of 120V under all usage conditions
• Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time
• Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types
• Corrects line voltage conditions as low as 65V and as high as 150V back to 120V (+/-2%) values
• Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs
• Standard internal battery set offers 30 minutes runtime at half load (1200W) and 12 minutes at full load (2400W)
• Optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs
• Intelligent battery management system extends battery life
• Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
• Compact rackmount form factor installs using only 3 rack spaces (3U) with a maximum installed depth of 26 inches
• Ships with all mounting accessories for 4 post rackmount installation
• Optional 2POSTRMKITHD enables 2 post rackmount installation
• Optional 2-9USTAND accessory enables small-footprint upright tower placement
• Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
• Network interfaces support simultaneous communications via built-in USB, DB9 serial/contact-closure and slot for network management card options
• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
• HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• Built-in Emergency Power Off (EPO) interface with cable
• NEMA L5-30P input plug/NEMA 5-15/20R & NEMA L5-30R output receptacles
• Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual load banks (each bank has four outlets)
• Front panel LEDs offer current monitoring and battery charge level information
• UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user required
• Single line TEL/DSL or network ethernet line surge suppression
• $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
