Brand: Tripp-Lite
|
SKU:
641309

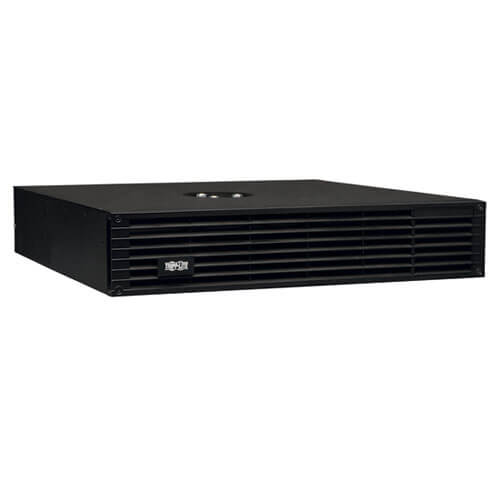

Tripp-Lite SU6000XFMR2U | 6kVA / 6kW Stepdown Isolation Transformer - converts 208 or 240V to 120V
Regular price
$2,357.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SU6000XFMR2U | 6kVA / 6kW Stepdown Isolation Transformer...
Regular price
$2,357.04
Unit price
Description
Description
Tripp-Lite SU6000XFMR2U | 6kVA / 6kW Stepdown Isolation Transformer - converts 208 or 240V to 120V
Features
- Step-down/isolation transformer converts high voltage 208 or 240V input from generator, utility or UPS to low voltage 120V output
- 6kVA / 6,000 watt power handling capacity
- 12 built-in NEMA 5-15/20R output receptacles accept common 5-15P and 5-20P equipment plugs; built-in L6-30R outlet supports one high voltage L6-30P plug
- Included mounting accessories support 2U installation in 4 post rack enclosures with a max depth requirement of only 27.25 inches
- Optional 2POSTRMKITHD enables 2 post relay-rack installation
- Optional 2-9USTAND accessory enables upright tower installation
Specifications
Specifications
Highlights
- 6kVA / 6,000 watt step-down isolation transformer converts 208 or 240V to 120V
- Supports L6-30P plug in or hardwire installation
- 8 5-15/20R and 4 5-15R 120VAC outlets accommodate 5-15P and 5-20P equipment plugs, L6-30R outlet accommodates one high voltage plug
- Ideal means of converting UPS, utility, generator or other 208/240V input to 120VAC
- Supports 2U rackmount installation
Package Includes
- SU6000XFMR2U step-down, isolation transformer
- 4 post rackmount accessories
- Owner's manual with warranty information
Overview
| UPC Code | 37332151612.0 |
|---|
Input
| Nominal Input Voltage(s) Supported | 208V AC; 240V AC |
|---|---|
| UPS Input Cord Length (ft.) | 4 |
| Recommended Electrical Service | 208/240V 30A |
| Maximum Input Amps | 24 |
| Maximum Input Amps Details | 24A with L6-30P, 30A hardwired |
| Input Connection Type | L6-30P and hardwire input supported |
Output
| Frequency Compatibility | 60 Hz |
|---|---|
| Output (VA) | 6000 |
| Output (Watts) | 6000 |
| Output Receptacles | (8) 5-15/20R; (4) 5-15R; (1) L6-30R |
| Output Nominal Voltage | 120, 208/240V AC |
| Overload Protection | (2) 15A single pole breakers protect two 5-15R outlets each; (2) 20A single pole breakers protect four 5-20R each; L6-30R outlet is unbreakered |
Physical
| Form Factors Supported | Rack/Tower (2U) |
|---|---|
| Material of Construction | Steel |
| Shipping Dimensions (hwd / in.) | 8.80 x 22.00 x 27.00 |
| Shipping Weight (lbs.) | 83.00 |
| Unit Dimensions (hwd / in.) | 3.5 x 17.5 x 21.8 |
Environmental
| Relative Humidity | 0-95% (non-condensing) |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual Addendum for SU6000XFMR2U (English)
- Owner's Manual for SU6000XFMR2U SmartOnline 6kVA Transformer
- Single-Phase UPS Systems Visio Stencil
- Single-Phase UPS Systems Visio Stencil Preview
- Providing a Stable Foundation - College Station Independent School District Case Study (English)
- Top 12 Questions to Consider When Choosing UPS Systems for Network/Server Applications
- Download images for this product
