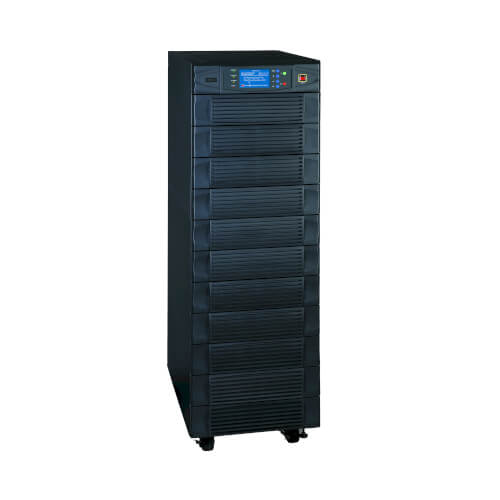

Tripp-Lite SU80K | SmartOnline 120/208V 3-Phase Wye 80kVA Modular 3-Phase UPS System, On-line Double-Conversion UPS for North America

Features

• N+1 configuration: four self-contained, redundant 20kVA power modules can be hot-swapped (with the load powered) if maintenance is required
• 1+1 configuration: connect two SU80K models in parallel to provide fail-safe redundancy or to increase capacity
• High input power factor, advanced IGBT inverter technology and Digital Signal Processor (DSP) technology create low input Total Harmonic Distortion (THDi)
• Extremely efficient operation (up to 96%) saves money by lowering electricity consumption
• True on-line, double conversion UPS with IGBT technology provides pure, sine wave AC output at all times
• Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time
• Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
• 80,000VA/64,000W power capacity with 3-phase, hardwire 120/208VAC input/output connections
• Features a wide input voltage correction range: 94-150/163-260VAC
• Precision +/-1% output voltage regulation
• A stand-alone hardwired external battery module (Models BP480V40C, available separately from Tripp Lite) is required for operation and to provide battery backup support. Additional external battery modules can be connected for extended runtime.
• Front panel combination LCD/LED display includes a real-time event log screen with up to 500 events listed
• Dynamic battery management screen optimizes battery function to lengthen service life and allows cold restart of UPS
• Serial port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
• Emergency Power Off button turns UPS output OFF and disables Bypass output
• Built-in Emergency Power Off (EPO) dry-contact interface supports remote emergency shutdown in large facilities
• Start-up service program is recommended to enhance the reliability of the installation
